Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Place the transmission in neutral service mode. Neutral Service Mode
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Mark the relationship between the propeller shaft and the differential drive pinion gear yoke using a suitable tool.
Rear Propeller Shaft Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Propeller Shaft (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Transfer Case Seal Removal Caution .

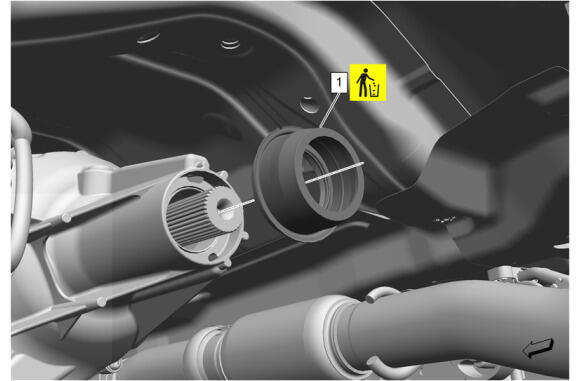

Transfer Case Rear Output Shaft Seal (1) - Remove and DISCARD
