Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Transfer Case Skid Shield Bolt (1) - Remove [3x]
{If equipped} Transfer Case Skid Shield (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Transfer Case Front Output Shaft Boot Clamp (1) @ Front Axle Propeller Shaft - Remove and DISCARD
Reposition the transfer case front output shaft boot (2) and mark a reference point between the front axle propeller shaft and the transfer case front output shaft.
Courtesy of GENERAL MOTORS COMPANY

Mark a reference point between the front axle propeller shaft (1) and the front differential drive pinion gear yoke.
Front Axle Propeller Shaft Bolt (2) - Remove [6x]
Front Axle Propeller Shaft Washer (3) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Front Axle Propeller Shaft (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Transfer Case Front Output Shaft Boot Clamp (2) @ Transfer Case - Remove and DISCARD
Transfer Case Front Output Shaft Boot (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

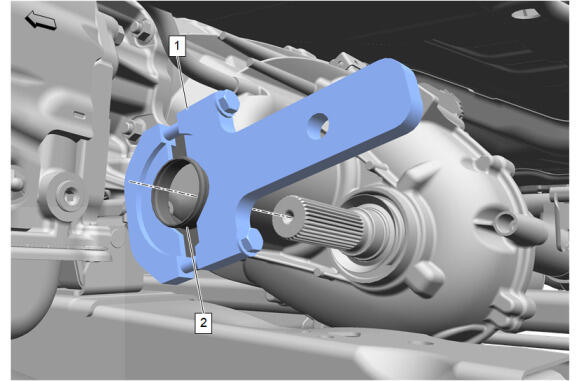

Using the DT-51329 Driveshaft Removal Adapter (1) and standard 3-jaw puller, remove the transfer case front output shaft oil slinger (2) from the transfer case.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Take care not to damage the transfer case when prying the front output shaft seal out. If the transfer case is damaged excessively during seal removal, the new seal may not seal properly after installation.

Using a suitable flat bladed tool, pry the transfer case front output shaft seal (1) out of the transfer case.
Transfer Case Front Output Shaft Seal (1) - Remove and DISCARD
