Removal Procedure

WARNING: This page is about a different variant/trim than selected.

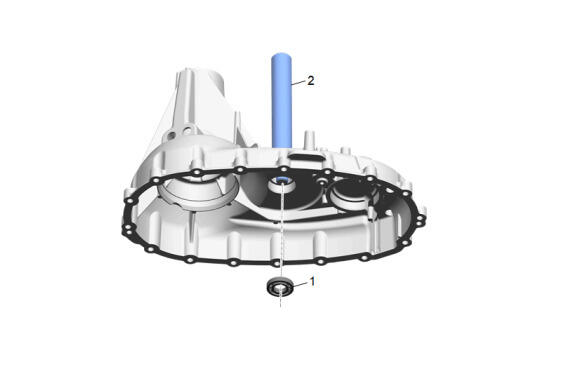

GM5552535Courtesy of GENERAL MOTORS COMPANY
  1. Remove the transfer case four wheel drive actuator lever shaft bearing (1) from the rear case half.
