Installation Procedure

WARNING: This page is about a different variant/trim than selected.

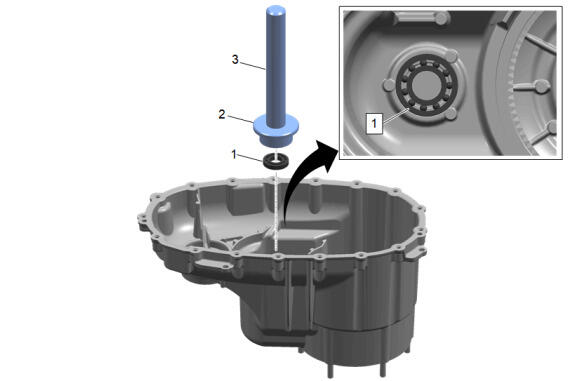

  1. GM5055805Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the printing on the bearing is facing upward.

    Press the transfer case four wheel drive actuator lever bearing (1) with a suitable adapter and the J-8092  Universal Driver (3) until the transfer case four wheel drive actuator lever bearing (1) bottoms on the front case half.
