Magna Transfer Case Bar Code Label

WARNING: This page is about a different variant/trim than selected.

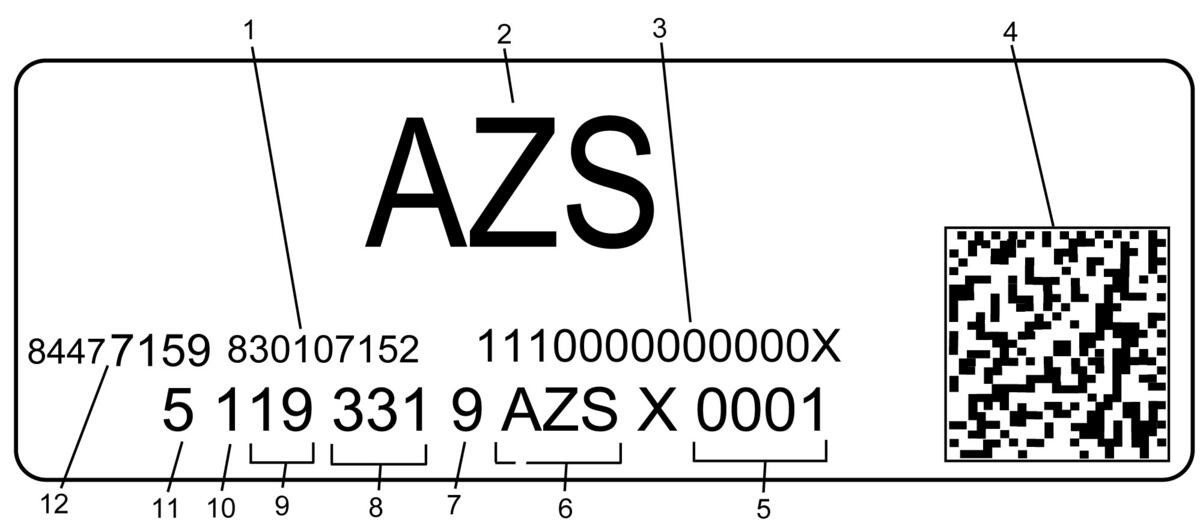

Fig 1: Identifying Magna Transfer Case Bar Code Label
GM4994504Courtesy of GENERAL MOTORS COMPANY
  1. GM Duns Number
  2. Broadcast Code
  3. VPPS Code
  4. 2D Barcode
  5. Build Number - Per Day
  6. Broadcast Code
  7. Model Year
  8. Julian Date
  9. Build Year
  10. Shift Number
  11. Line Number
  12. GM Assembly Part Number
