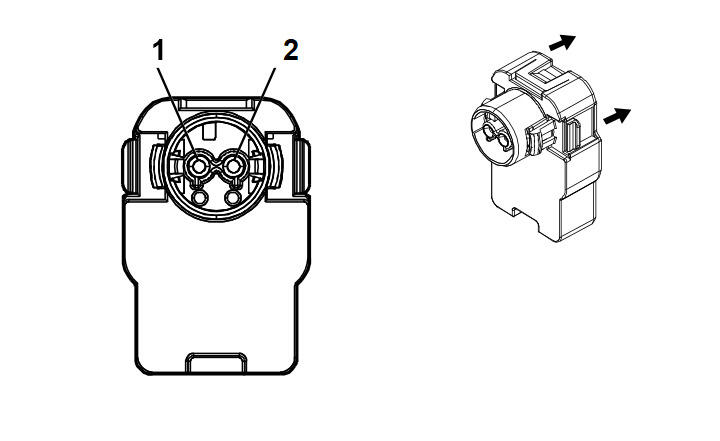

F101 Instrument Panel Airbag X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel Airbag Jumper
- OEM Connector: 13598467
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F ABX-5 Series (PK with YE Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE / OG |
3025 |
Passenger Instrument Panel Air Bag Stage 1 High Control |
I |
- |
| 2 |
0.5 |
OG / WH |
3024 |
Passenger Instrument Panel Air Bag Stage 1 Low Control |
I |
- |
