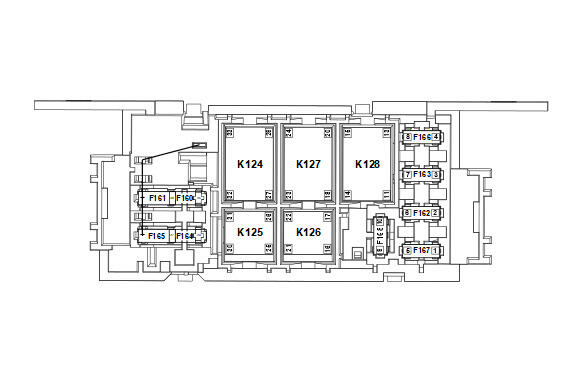

X51AX Instrument Panel Wiring Harness Junction Block - Auxiliary Top View (5W4/9C1)

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F160	SW 1-2 RC	F160DA	5A	KR161A Configurable Provision Relay 1 KR161B Configurable Provision Relay 2
F161	SW 1-2 BATT	F161DA	5A	KR161A Configurable Provision Relay 1 KR161B Configurable Provision Relay 2
F162	UPFIT1	F162DA	25A	W12FC Blunt Cut - Front Seat/Center Console
F163	UPFIT2	F163DA	20A	W12FC Blunt Cut - Front Seat/Center Console
F164	SW 3-4 RC	F164DA	5A	KR161C Configurable Provision Relay 3 KR161D Configurable Provision Relay 4
F165	SW 3-4 BATT	F165DA	5A	KR161C Configurable Provision Relay 3 KR161D Configurable Provision Relay 4
F166	UPFIT3	F166DA	20A	W12RCL Blunt Cut - Left Rear Cargo Trim
F167	UPFIT4	F167DA	25A	W12RCL Blunt Cut - Left Rear Cargo Trim
Relays
K124	UPFIT1	KR161A Configurable Provision Relay 1	-	F162DA
K125	UPFIT2	KR161B Configurable Provision Relay 2	-	F163DA
K126	UPFIT3	KR161C Configurable Provision Relay 3	-	F166DA
K127	UPFIT4	KR161D Configurable Provision Relay 4	-	F167DA
K128	ROOF BEACON	-	-	Not Used
