X963 Valve Rocker Arm Oil Control Valve Extension Harness to Valve Rocker Arm Oil Control Valve Extension Harness (L84/L87)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

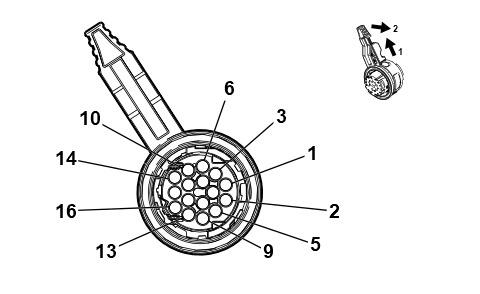

Connector Part Information
- Harness Type: Valve Rocker Arm Oil Control Valve Extension Harness
- OEM Connector: 10354998
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 1.5 LKS Series, Sealed (BK)
|

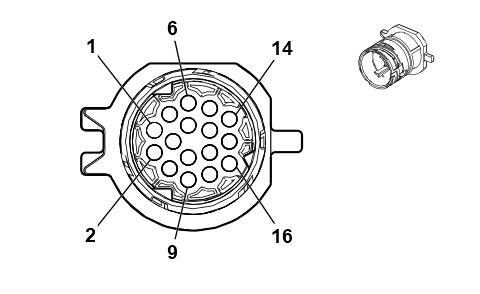

Connector Part Information
- Harness Type: Valve Rocker Arm Oil Control Valve Extension Harness
- OEM Connector: 10140573
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way M 1.5 LKS Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| II |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH / GN |
2492 |
I |
- |
Cylinder Shutoff Solenoid Enable Signal 2 |
1 |
0.5 |
WH / GN |
2492 |
II |
- |
| 2 |
0.5 |
GN |
5492 |
I |
- |
Cylinder Deactivation Solenoid Valve Control 2 |
2 |
0.5 |
GN |
5492 |
II |
- |
| 3 |
0.5 |
YE / GY |
2493 |
I |
- |
Cylinder Shutoff Solenoid Enable Signal 3 |
3 |
0.5 |
YE / GY |
2493 |
II |
- |
| 4 |
0.5 |
GY |
5493 |
I |
- |
Cylinder Deactivation Solenoid Valve Control 3 |
4 |
0.5 |
GY |
5493 |
II |
- |
| 5 |
0.5 |
WH / VT |
2495 |
I |
- |
Cylinder Shutoff Solenoid Enable Signal 5 |
5 |
0.5 |
WH / VT |
2495 |
II |
- |
| 6 |
0.5 |
VT |
5495 |
I |
- |
Cylinder Deactivation Solenoid Valve Control 5 |
6 |
0.5 |
VT |
5495 |
II |
- |
| 7 |
0.5 |
WH / YE |
2498 |
I |
- |
Cylinder Shutoff Solenoid Enable Signal 8 |
7 |
0.5 |
WH / YE |
2498 |
II |
- |
| 8 |
0.5 |
YE |
5498 |
I |
- |
Cylinder Deactivation Solenoid Valve Control 8 |
8 |
0.5 |
YE |
5498 |
II |
- |
| 9 |
0.5 |
WH / BU |
2491 |
I |
- |
Cylinder Shutoff Solenoid Enable Signal 1 |
9 |
0.5 |
WH / BU |
2491 |
II |
- |
| 10 |
0.5 |
BU |
5491 |
I |
- |
Cylinder Deactivation Solenoid Valve Control 1 |
10 |
0.5 |
BU |
5491 |
II |
- |
| 11 |
0.5 |
YE / GN |
2494 |
I |
- |
Cylinder Shutoff Solenoid Enable Signal 4 |
11 |
0.5 |
YE / GN |
2494 |
II |
- |
| 12 |
0.5 |
YE / BU |
5494 |
I |
- |
Cylinder Deactivation Solenoid Valve Control 4 |
12 |
0.5 |
YE / BU |
5494 |
II |
- |
| 13 |
0.5 |
YE / BN |
2496 |
I |
- |
Cylinder Shutoff Solenoid Enable Signal 6 |
13 |
0.5 |
YE / BN |
2496 |
II |
- |
| 14 |
0.5 |
BN |
5496 |
I |
- |
Cylinder Deactivation Solenoid Valve Control 6 |
14 |
0.5 |
BN |
5496 |
II |
- |
| 15 |
0.5 |
GN / GY |
2497 |
I |
- |
Cylinder Shutoff Solenoid Enable Signal 7 |
15 |
0.5 |
GN / GY |
2497 |
II |
- |
| 16 |
0.5 |
WH |
5497 |
I |
- |
Cylinder Deactivation Solenoid Valve Control 7 |
16 |
0.5 |
WH |
5497 |
II |
- |
