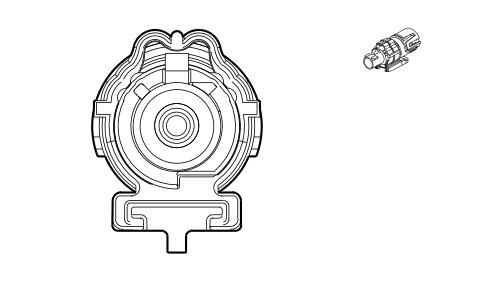

X951 Front Object Alarm Sensor Wiring to Body Wiring Harness (UV2)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Front Object Alarm Sensor Wiring COAX
- OEM Connector: 35256728
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F Coax Type
|
Connector Part Information
- Harness Type: Body Wiring Harness COAX
- OEM Connector: 33338239
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M Coax Type, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
Front Vision Camera 1 Coaxial Video Signal |
- |
- |
Coax Cable |
- |
I |
- |
