Rear Axle Lubricant Level Inspection (G96)
- Raise and support the vehicle. Lifting and Jacking the Vehicle

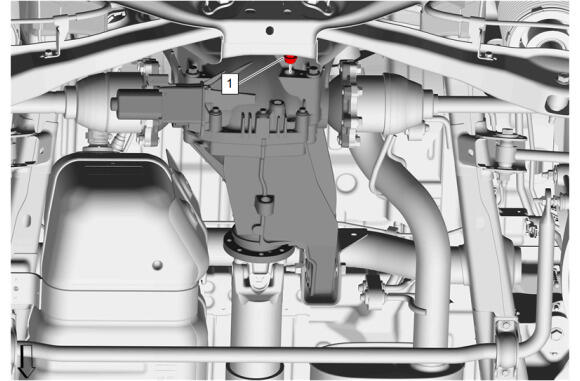

Rear Axle Housing Fill Plug (1) - Remove
- Inspect the gear lubricant level, it should be 1-2 mm (0.039-0.079 in) below the bottom of the fill plug opening.
- If the level is low, add gear lubricant until the level is 1-2 mm (0.039-0.079 in) below the bottom of the fill plug opening. Use the appropriate axle lubricant: Adhesives, Fluids, Lubricants, and Sealers
- Rear Axle Housing Fill Plug (1) - Install and tighten - Fastener Specifications
- Lower the vehicle.
CAUTION:
Refer to Component Fastener Tightening Caution .
