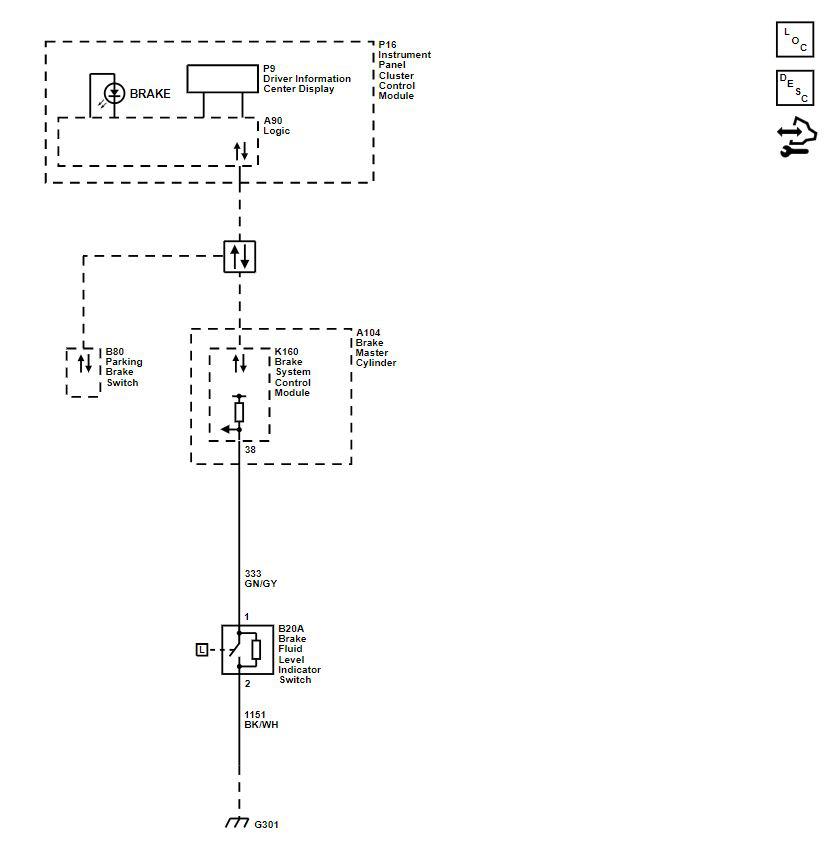

Home >> Chevrolet >> 2022 >> Tahoe PPV, RWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes System >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brakes
