Installation Procedure

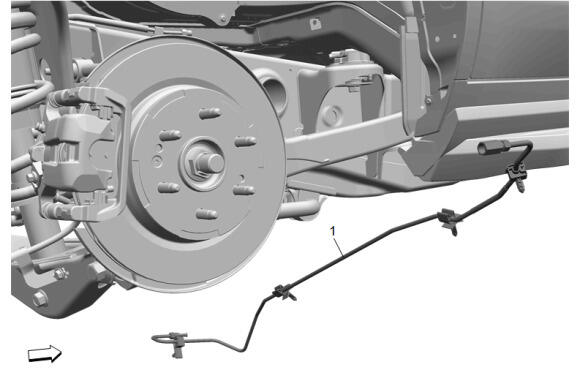

  1. GM5570496Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Crossover Pipe (1) - Install

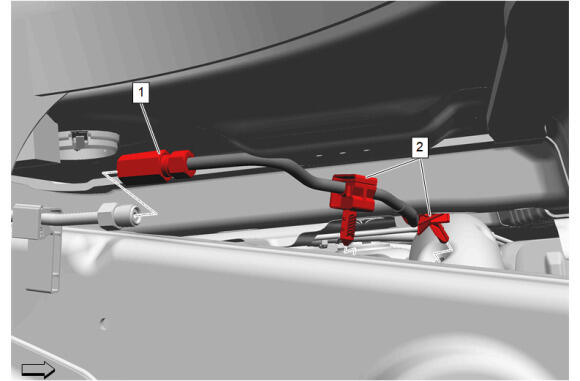

  2. GM5570501Courtesy of GENERAL MOTORS COMPANY

    Remove the plug from the rear brake rear pipe inlet.

    3. CAUTION:

    Fastener Caution

  3. Rear Brake Crossover Pipe Nut (1) - Install and tighten - Fastener Specifications
  4. Rear Brake Crossover Pipe Retainer (2) - Install [2x]

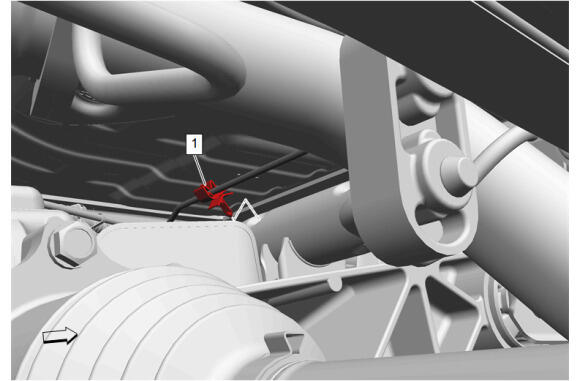

  5. GM5570497Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Crossover Pipe Retainer (1) - Install

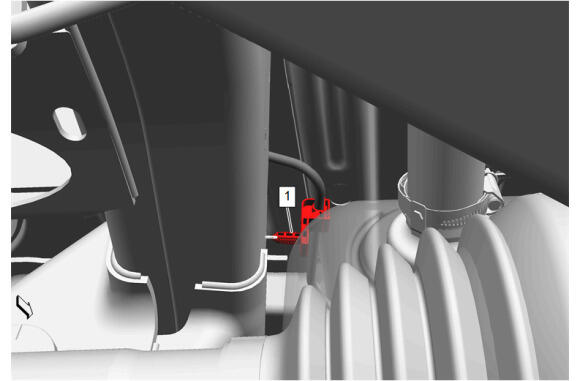

  6. GM5570498Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Crossover Pipe Retainer (1) - Install

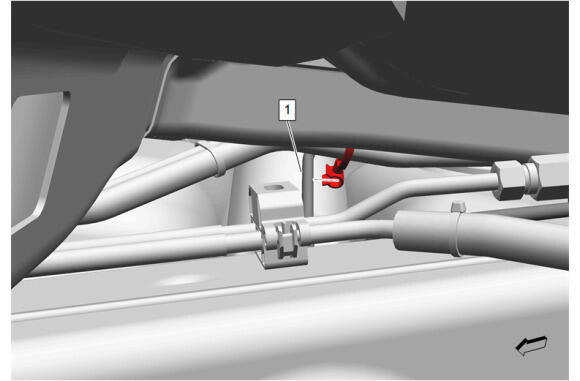

  7. GM5570499Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Crossover Pipe (1) @ Retainer Clip - Install

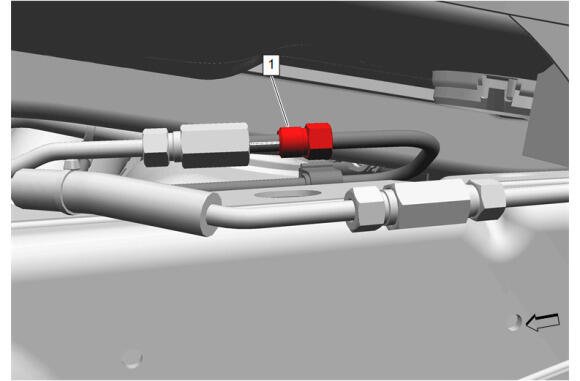

  8. GM5570495Courtesy of GENERAL MOTORS COMPANY

    Remove the plug from the rear brake front pipe outlet.

  9. Rear Brake Crossover Pipe Nut (1) - Install and tighten - Fastener Specifications

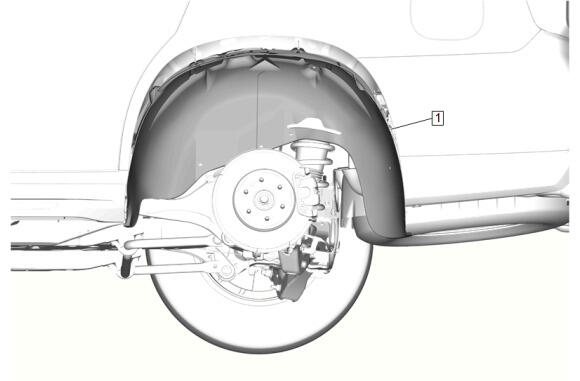

  10. GM5515237Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Wheelhouse Liner (1) - Install [2x]

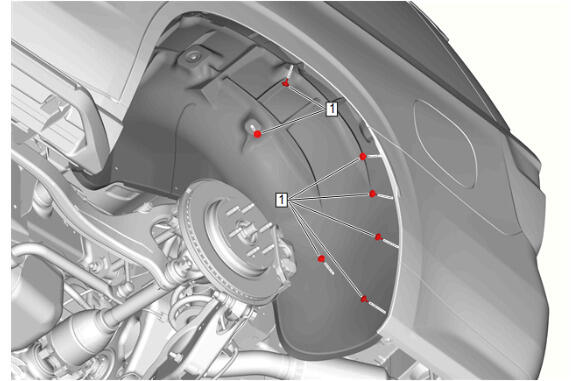

  11. GM5515235Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Wheelhouse Liner Bolt (1) - Install and tighten [14x] - Fastener Specifications

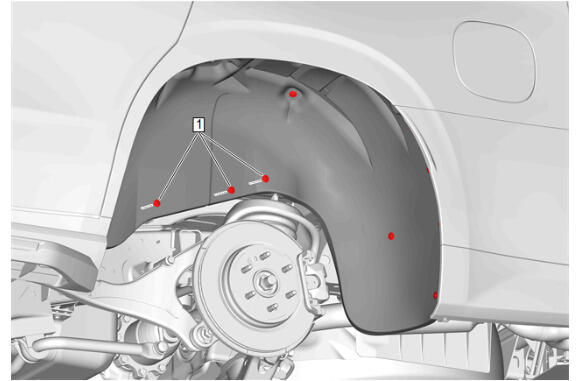

  12. GM5515233Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Wheelhouse Liner Bolt (1) - Install and tighten [6x] - Fastener Specifications

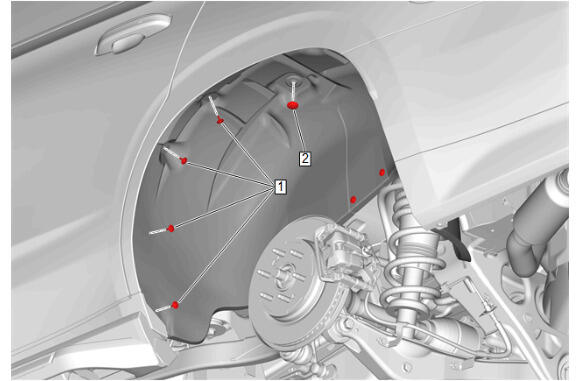

  13. GM5515231Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Wheelhouse Liner Retainer (2) - Install [2x]

  14. Rear Wheelhouse Liner Bolt (1) - Install and tighten [8x] - Fastener Specifications
  15. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
  16. Bleed the brake system. Hydraulic Brake System Bleeding
  17. Install the rear tire and wheel assemblies. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
  18. Remove the support and lower the vehicle.
  19. Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
