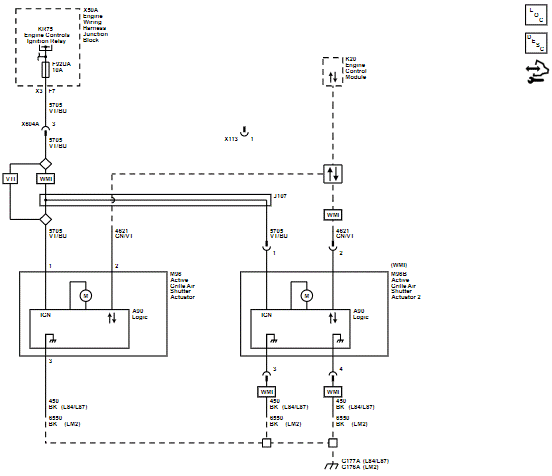

Home >> Chevrolet >> 2022 >> Tahoe PPV, RWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bumpers And Fascias >> Schematic Wiring Diagrams >> Active Grille Air Shutter Wiring Schematics >> Active Grille Air Shutter
