Installation Procedure

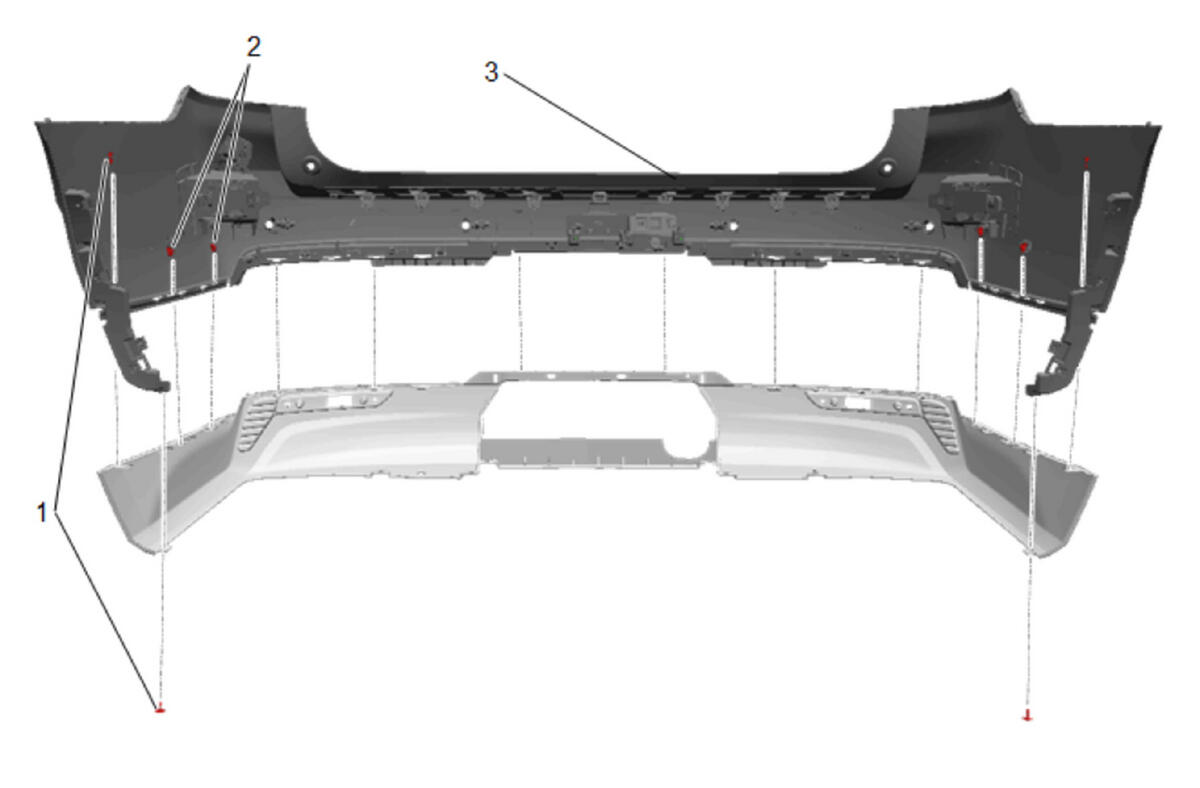

Install the rear bumper upper fascia (3) to the rear bumper lower fascia.
- Rear Bumper Fascia Retainer (2) - Install [4x]
- Rear Bumper Fascia Bolt (1) - Install and tighten [4x] - Fastener Specifications
Rear Fascia Lower Signal Lamp (1) - Install [2x]
Rear Fascia Signal Lamp Bolt (1) - Install and tighten [4x] - Fastener Specifications
Rear Closure Hands Free Module Bracket (1) - Install
Rear Closure Hands Free Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Rear Closure Hands Free Module Retainer (2) - Install [2x]
Rear Closure Hands Free Lamp (2) - Install
- Rear Closure Hands Free Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
Rear Closure Hands Free Module (2) - Install
- Rear Closure Hands Free Module Bolt (1) - Install and tighten - Fastener Specifications

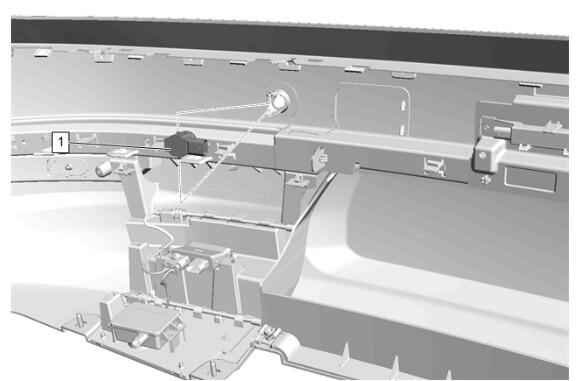

Rear Closure Hands Free Sensor (1) - Install
- Connect the electrical connector.

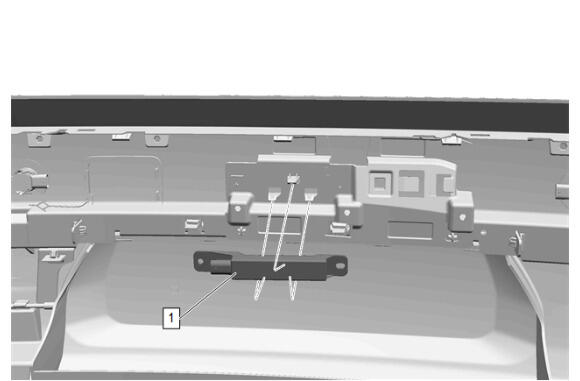

{If equipped} Low Frequency Rear Bumper Antenna (1) - Install
Rear Bumper Fascia Trailer Hitch Cover (2) - Install
- Install the 2 rear bumper fascia trailer hitch cover retainer (1) turn a 1/4 turn clockwise to secure.

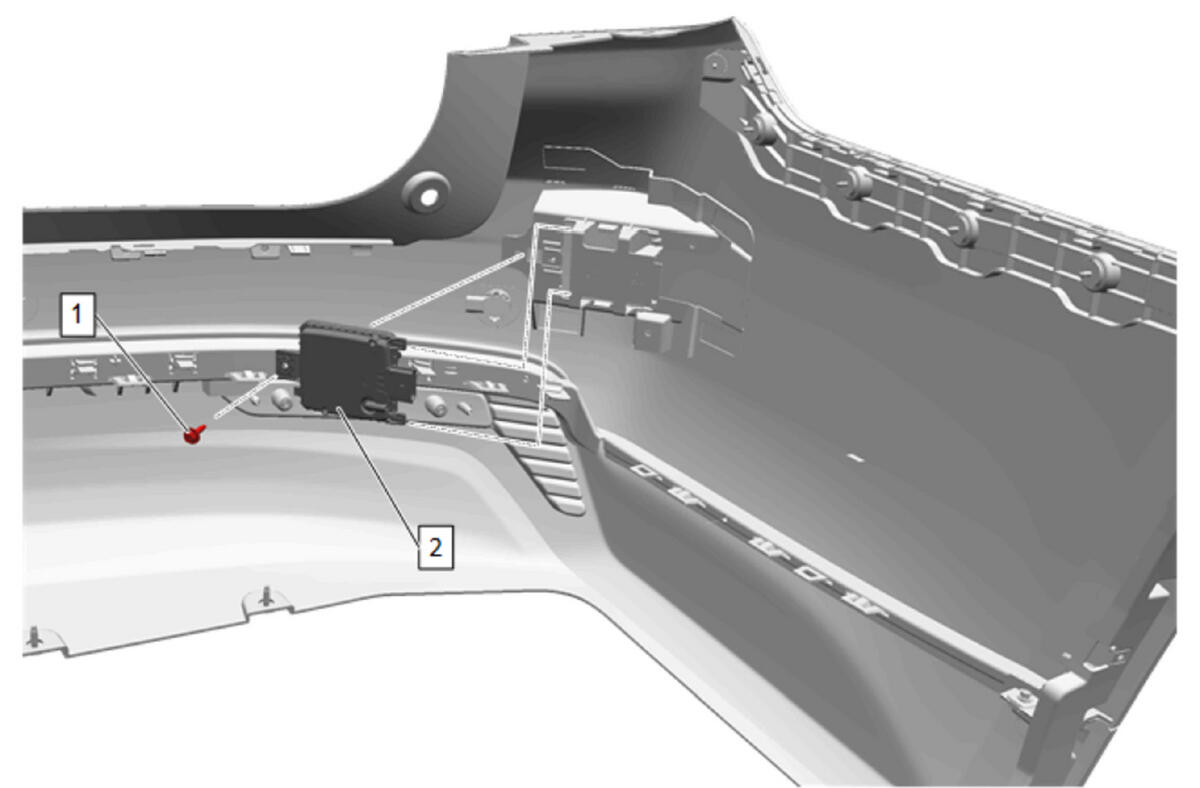

Install the left and right side object sensing alert module (2).
- Install and tighten the left and right side object sensing alert module (1). Fastener Specifications
- NOTE:
Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.
Insert the 4 parking assist alarm sensor (1) into the housing.
Rear Bumper Fascia Molding (2) - Install
- Rear Bumper Fascia Molding Retainer (1) - Install [4x]
- Install the wiring harness.
- Connect all electrical connectors.
Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
- Perform the necessary programming and setup procedure: Control Module References
Refer to Fastener Caution .
