Installation Procedure

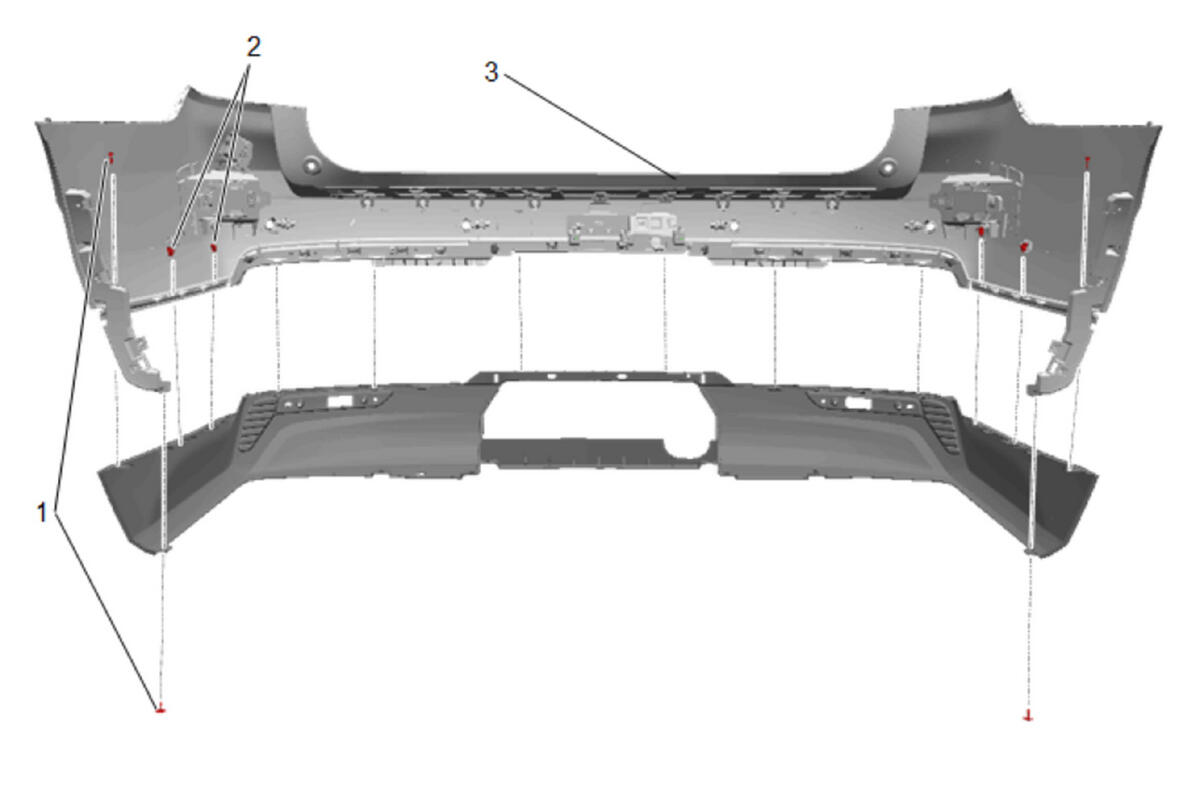

Install the rear bumper lower fascia (3) to the rear bumper upper fascia.

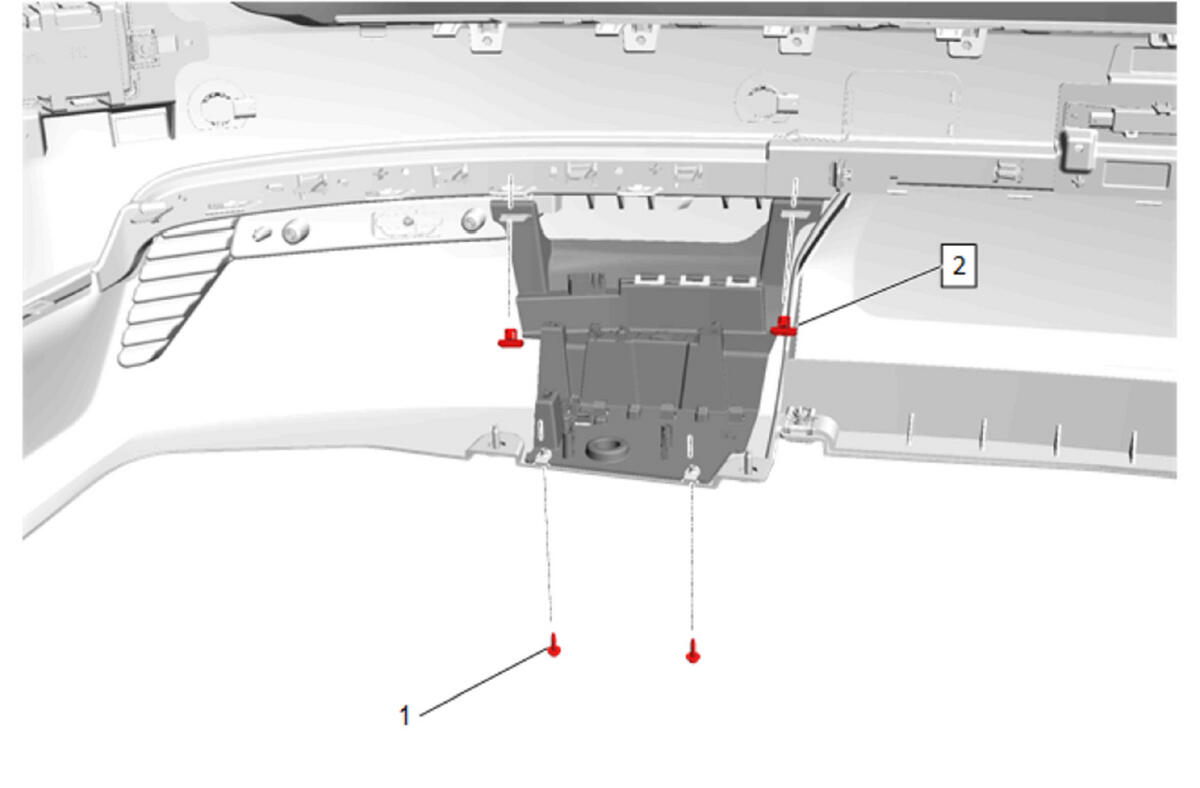

- Rear Bumper Fascia Retainer (2) - Install [4x]
- Rear Bumper Fascia Bolt (1) - Install and tighten [4x] - Fastener Specifications

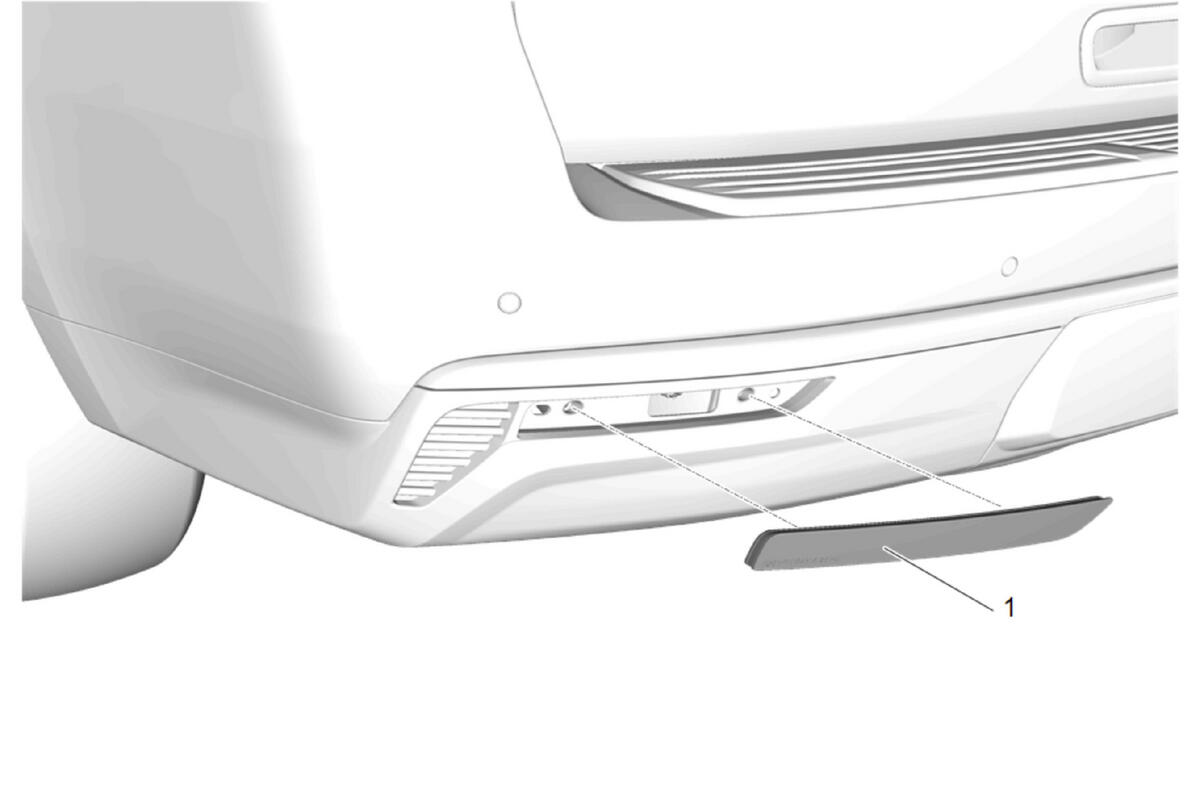

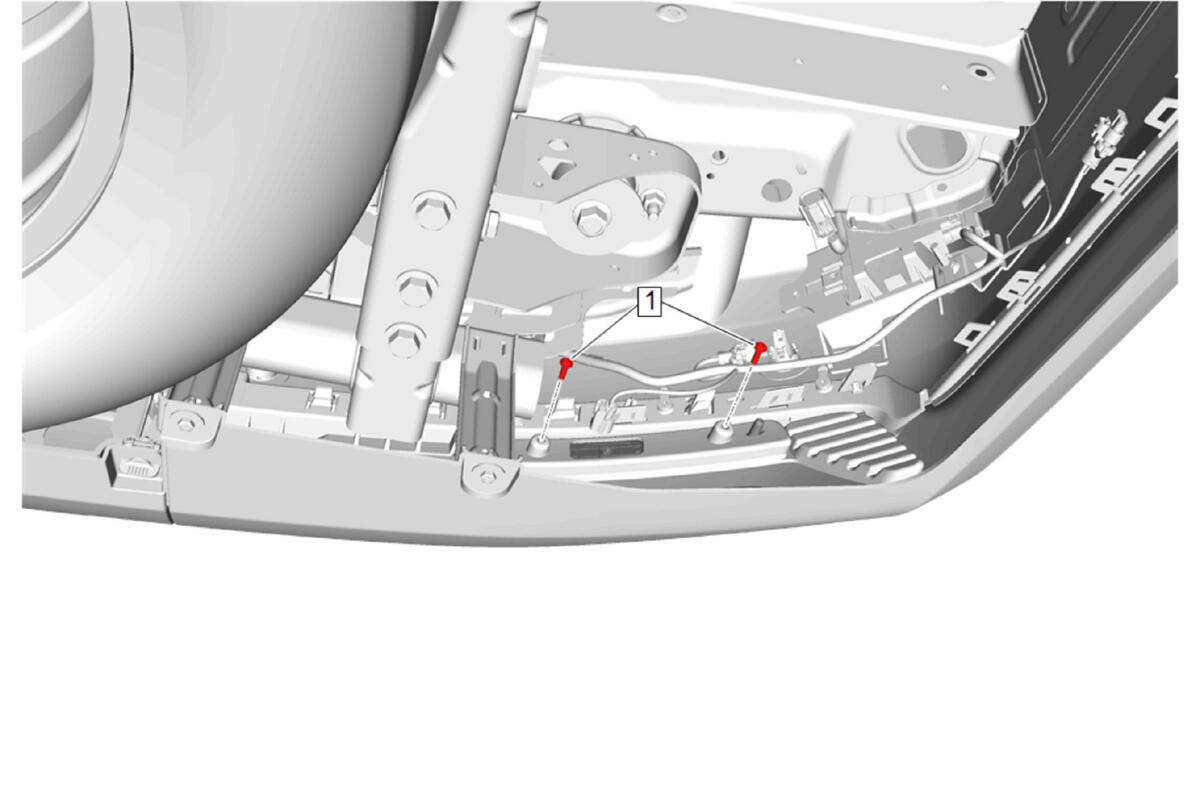

Rear Fascia Lower Signal Lamp (1) - Install [2x]
Rear Fascia Signal Lamp Bolt (1) - Install and tighten [4x] - Fastener Specifications
- {If equipped} Connect the electrical connector. [2x]

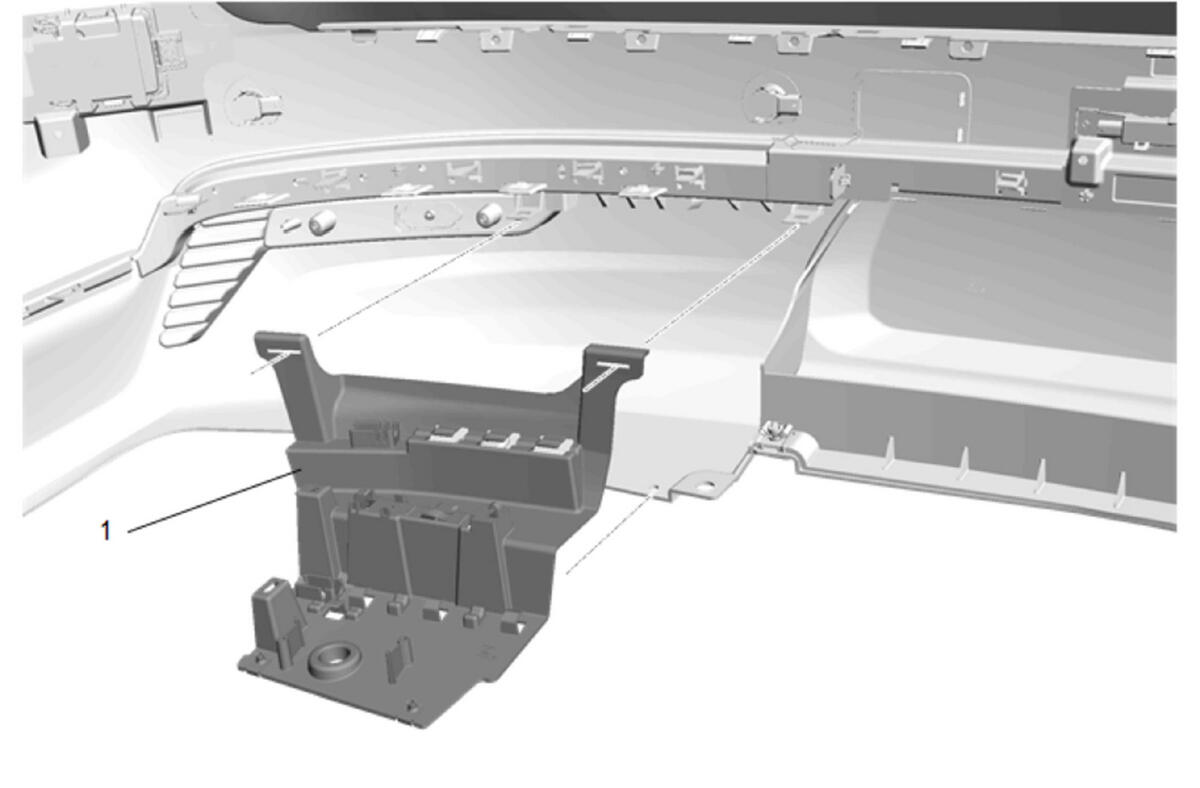

Rear Closure Hands Free Module Bracket (1) - Install
Rear Closure Hands Free Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Rear Closure Hands Free Module Retainer (2) - Install [2x]

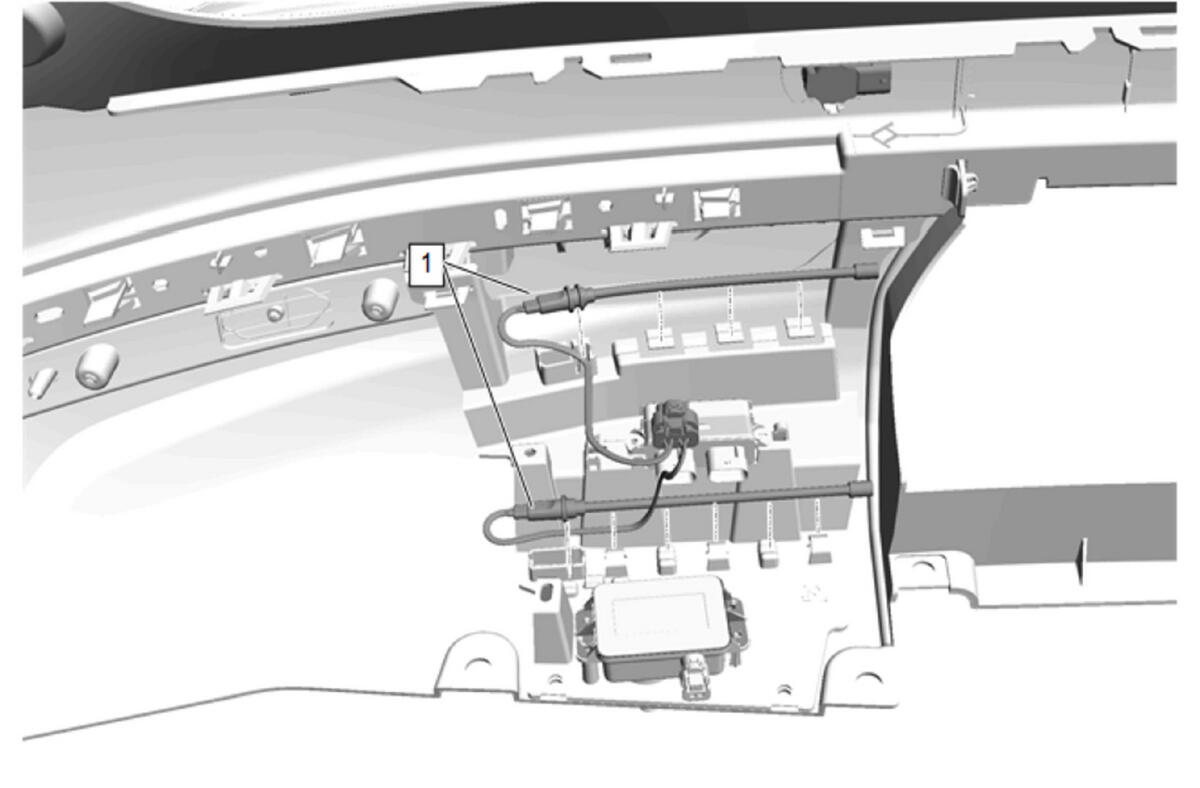

- Install the 2 wire harness retainers.
Rear Closure Hands Free Lamp (2) - Install
- Rear Closure Hands Free Module Bolt (1) - Install and tighten [2x] - Fastener Specifications

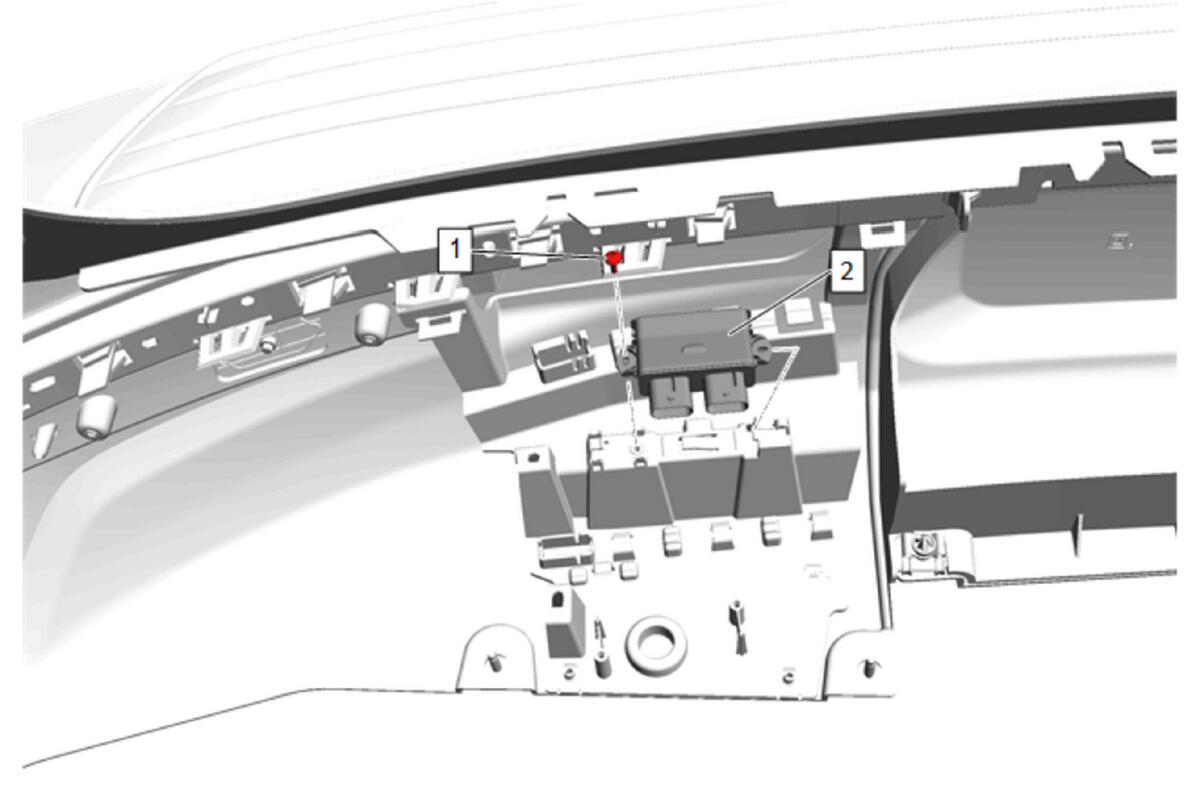

Rear Closure Hands Free Module (2) - Install
- Rear Closure Hands Free Module Bolt (1) - Install and tighten - Fastener Specifications

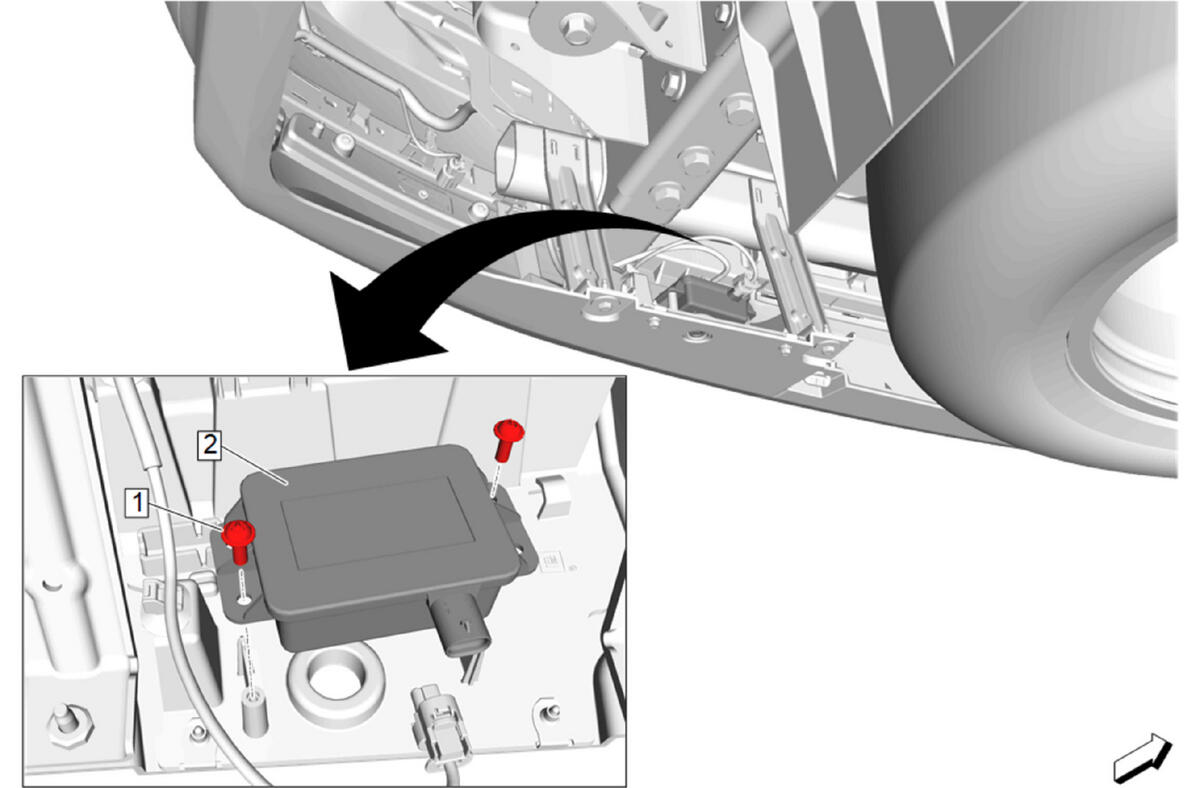

Rear Closure Hands Free Sensor (1) - Install
- Connect all electrical connectors.

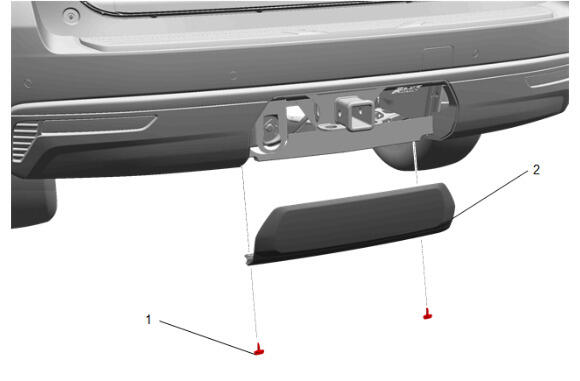

Rear Bumper Fascia Trailer Hitch Cover (2) - Install
- Install the 2 rear bumper fascia trailer hitch cover retainers (1) turn a 1/4 turn clockwise to secure.

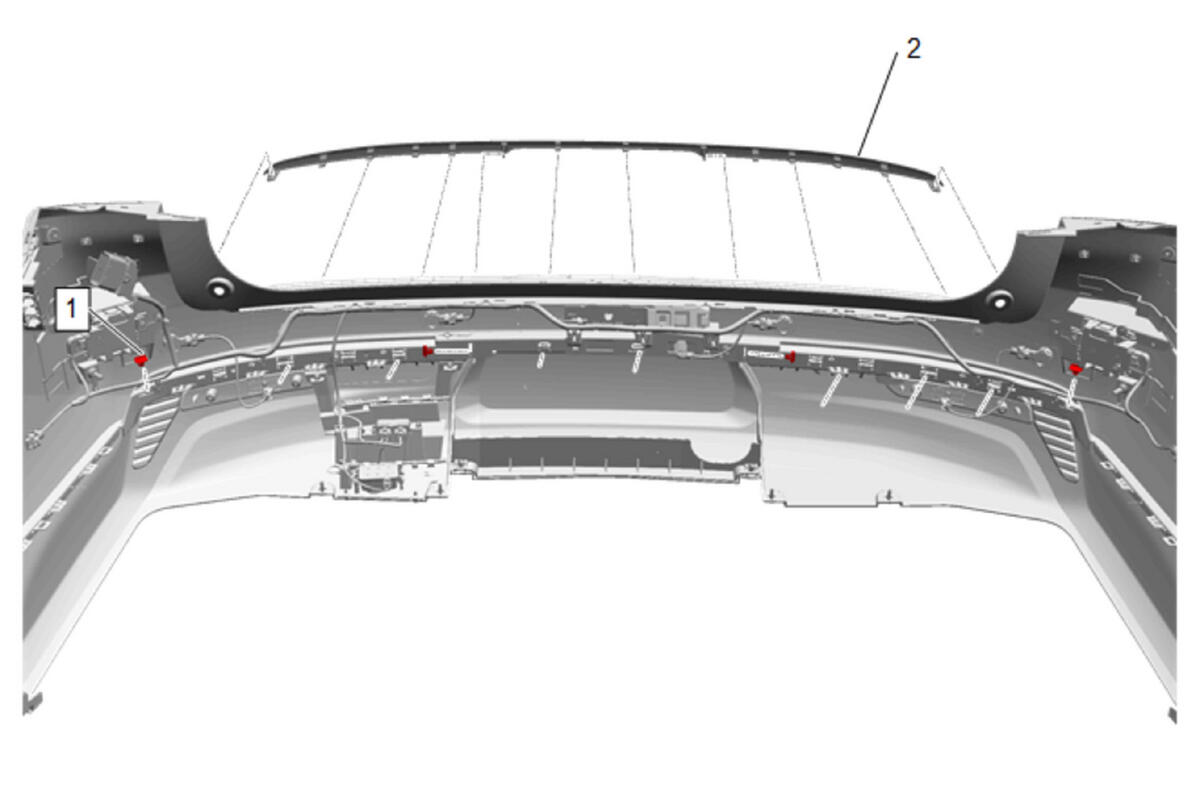

Rear Bumper Fascia Molding (2) - Install
- Rear Bumper Fascia Molding Retainer (1) - Install [4x]
Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
CAUTION:
Refer to Fastener Caution .
