Installation Procedure

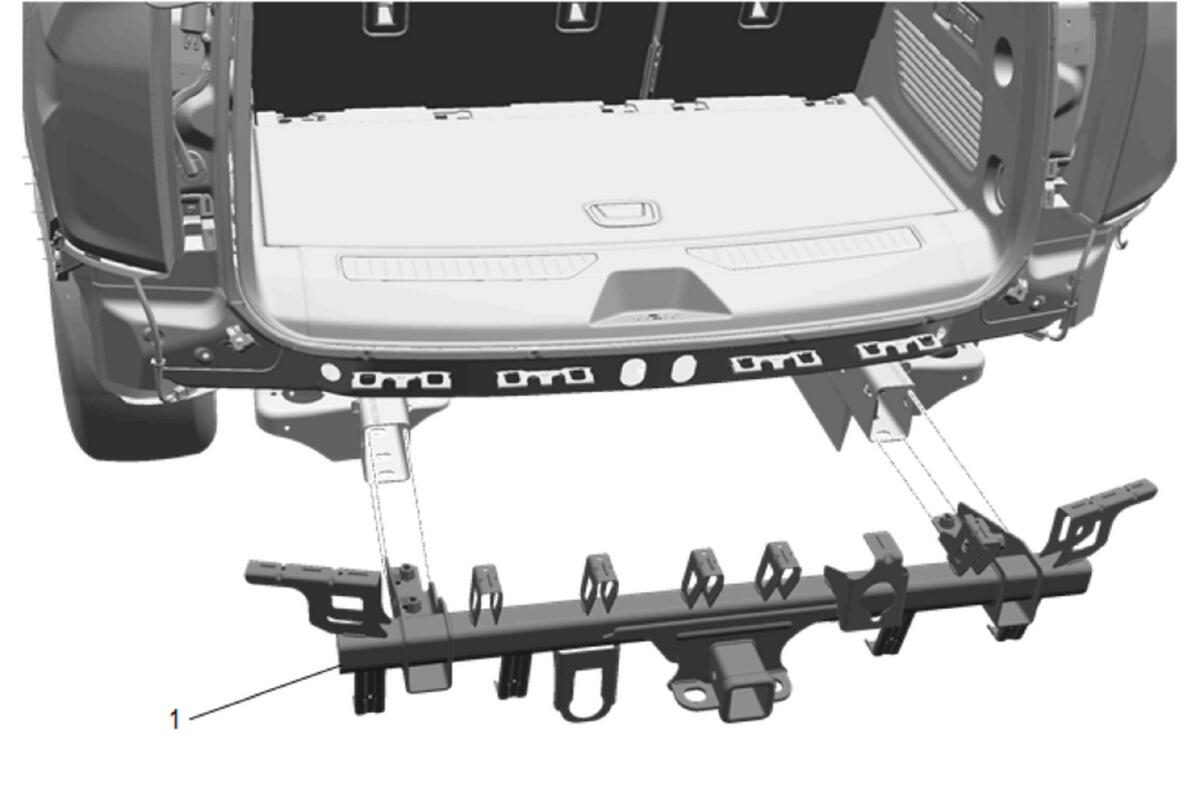

  1. GM5569474Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Impact Bar (1) - Install

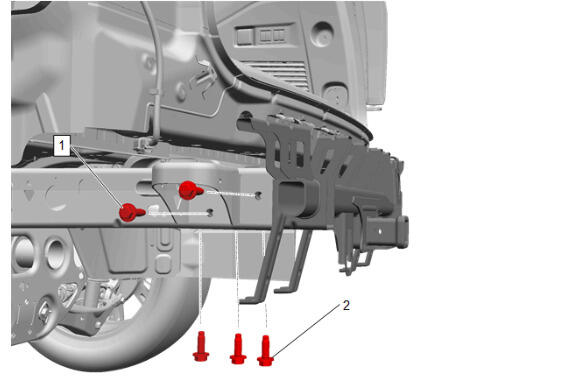

  2. GM5569473Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install and tighten the 2 outer left and right side rear bumper impact bar bolts (1). Fastener Specifications

  3. Install and tighten the 3 lower left and right side rear bumper impact bar bolts (2). Fastener Specifications

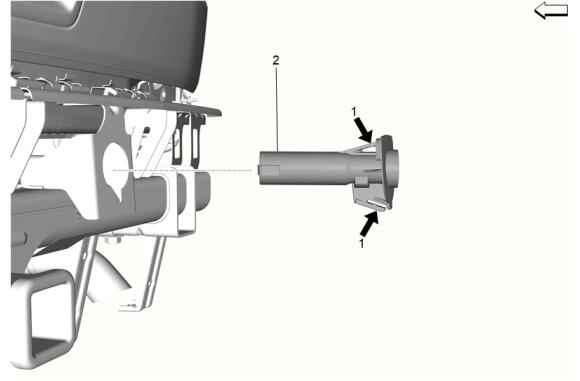

  4. GM5549164Courtesy of GENERAL MOTORS COMPANY

    Push the spare wheel lock cylinder case (2) firmly into the rear bumper impact bar so that the spare wheel lock cylinder tabs (1) snap in place.

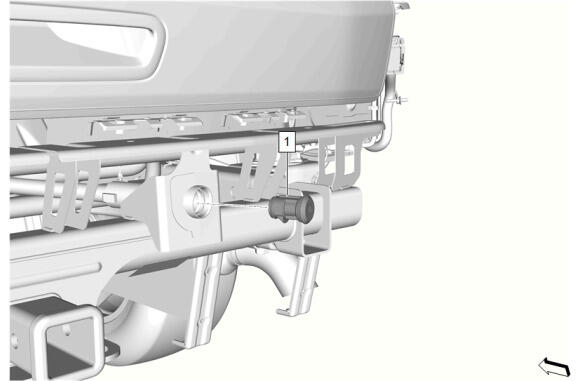

  5. GM5549162Courtesy of GENERAL MOTORS COMPANY

    Spare Wheel Hoist Lock Cylinder (1) - Install

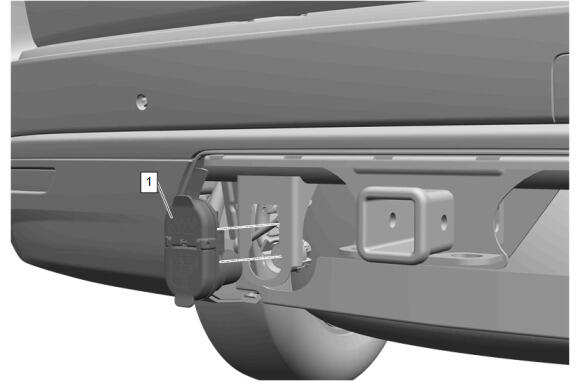

  6. GM5571541Courtesy of GENERAL MOTORS COMPANY

    Tow Vehicle Electrical Receptacle (1) - Install

  7. Secure the retaining tabs.
  8. Connect the electrical connectors.
  9. Connect the wire harness retainers.
  10. GM5539635Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
