Installation Procedure

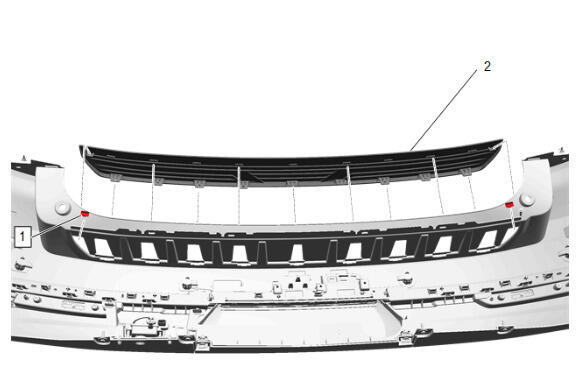

  1. GM5563056Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia Step Pad (2) - Install

  2. Rear Bumper Fascia Step Pad Retainer (1) - Install [2x]
  3. Install the wiring harness.
  4. GM5539635Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
