Installation Procedure

GM5539635Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connectors.
  2. With the aid of an assistant, install the fascia. (1)

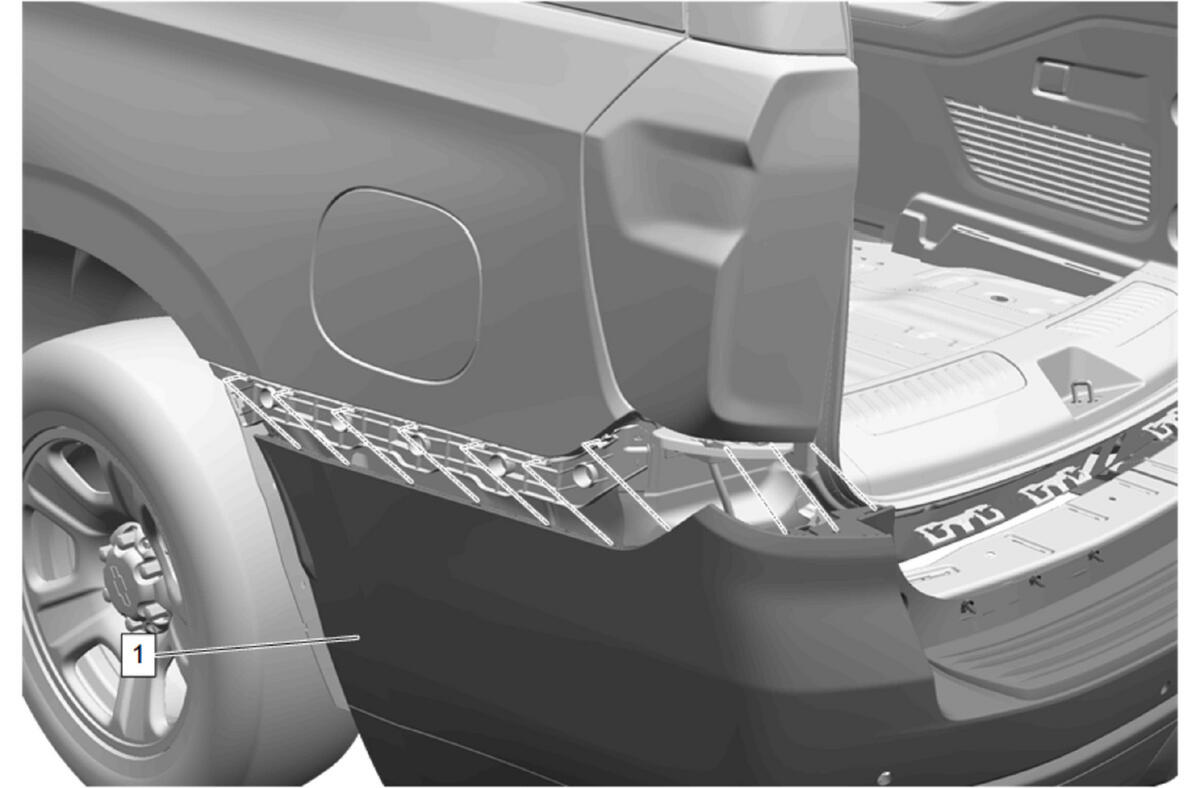

  3. GM5539633Courtesy of GENERAL MOTORS COMPANY

    Install the rear bumper fascia (1) to the rear fascia guide.

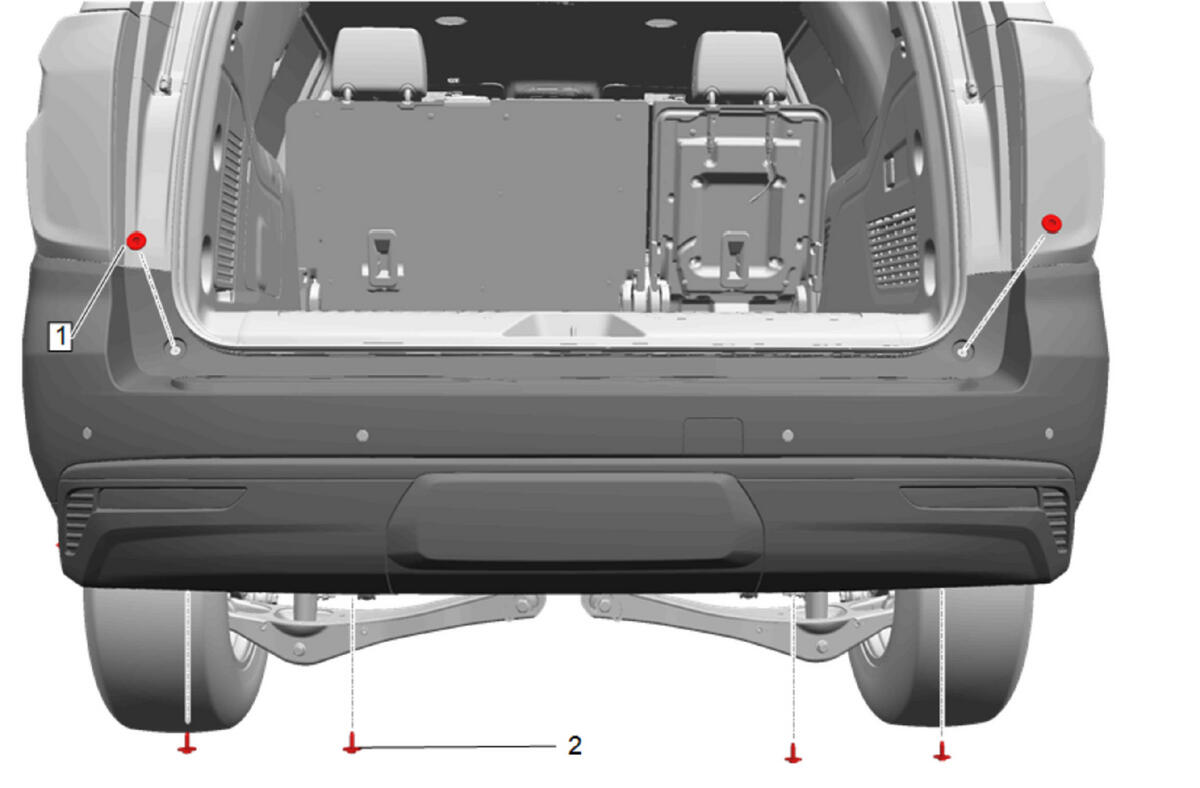

  4. GM5539632Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install and tighten the 2 left and right side liftgate adjust bumper bolts (1). Fastener Specifications

  5. Rear Bumper Fascia Lower Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications

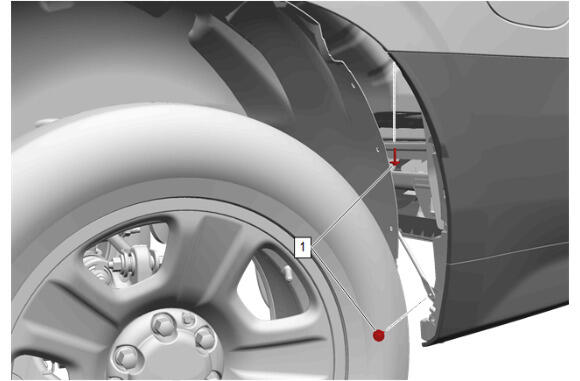

  6. GM5539630Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the left and right side rear fascia bolts (1). Fastener Specifications

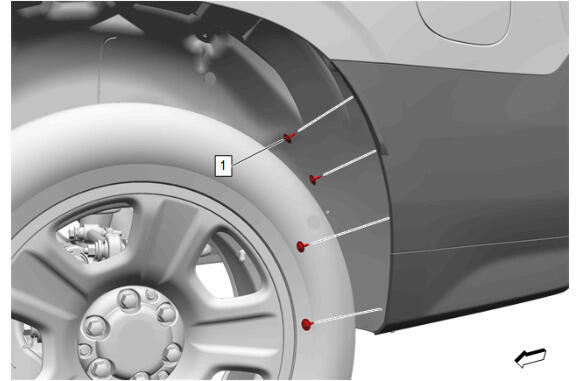

  7. GM5539629Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the 6 left and right side wheel house liner bolts (1). Fastener Specifications

  8. Lower the vehicle.
