Installation Procedure

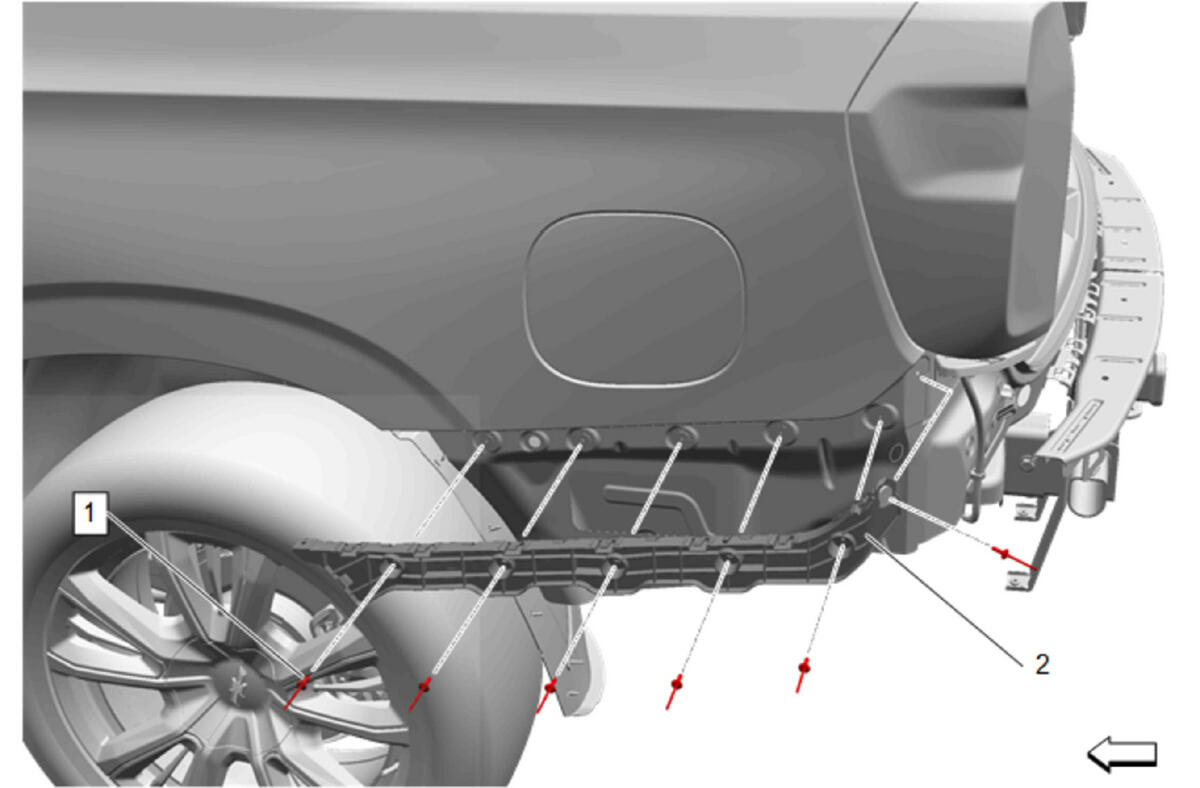

  1. GM5562835Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia Guide (2) - Install

  2. Rear Bumper Fascia Guide Rivet (1) - Install NEW [6x]

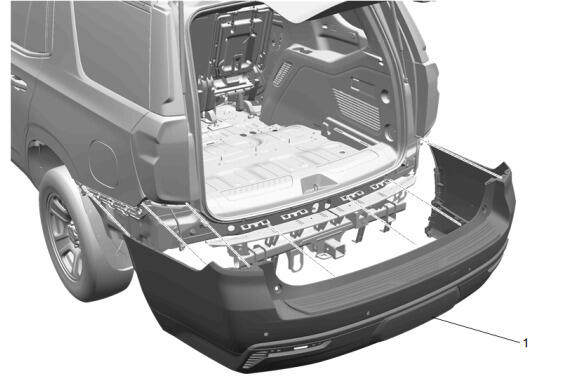

  3. GM5539635Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
