Removal Procedure

  1. GM5537676Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (2) - Remove - Front Bumper Fascia Removal and Installation (without Front Fascia Extension) , or Front Bumper Fascia Removal and Installation (with Front Fascia Extension)

  2. GM5520779Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove [6x]

  3. GM5520782Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove [6x]

  4. GM5520784Courtesy of GENERAL MOTORS COMPANY

    Release the front headlamp guide pin from the front bumper fascia guide (1).

  5. Front Headlamp (2) - Remove [2x]
  6. Release the wiring harness retaining tab.
  7. Disconnect all electrical connectors.
  8. GM5544167Courtesy of GENERAL MOTORS COMPANY

    Loosen the left and right side front bumper fascia upper stiffener nut (1).

  9. Remove the left and right side front bumper fascia upper stiffener bolt (2).
  10. GM5544169Courtesy of GENERAL MOTORS COMPANY

    Pull the front bumper fascia upper stiffener (1) up and out over the stud.

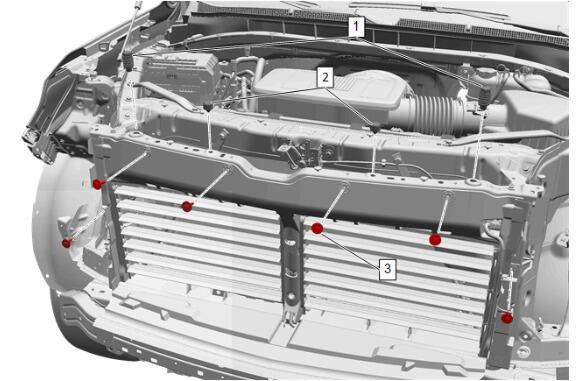

  11. GM5552334Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 outer hood front bumpers (1).

  12. Hood Front Bumper (2) - Remove [2x]
  13. Remove the top 6 front bumper shutter bolts (3) and carefully reposition the front bumper shutter away from the front grille support reinforcement.

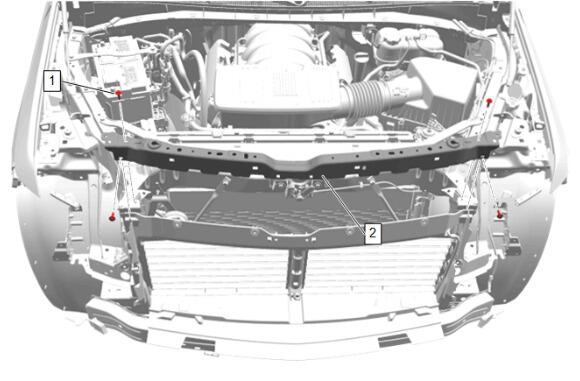

  14. GM5552336Courtesy of GENERAL MOTORS COMPANY

    Front Grille Support Bracket Bolt (1) - Remove [4x]

  15. Front Grille Support Reinforcement (2) - Remove
