Removal Procedure
Front Bumper Fascia (2) - Remove - Front Bumper Fascia Removal and Installation (without Front Fascia Extension) , or Front Bumper Fascia Removal and Installation (with Front Fascia Extension)
- NOTE:
Left side shown, right side similar.
Remove the 6 right and left side headlamp bolts (1).
- NOTE:
Left side shown, right side similar.
Remove the 6 right and left side headlamp bolts (1).
- NOTE:
Left side shown, right side similar.
Release the front headlamp guide pins from the front bumper fascia guides (1).
- Remove the right and left side headlamps (2).
- Release the wiring harness retaining tabs.
- Disconnect all electrical connectors.
Loosen the left and right side front bumper fascia upper stiffener nuts (1).
- Remove the left and right side front bumper fascia upper stiffener bolts (2).
Pull the front bumper fascia upper stiffener (1) up and out over the stud.
- Disconnect the electrical connector and reposition wiring harness.

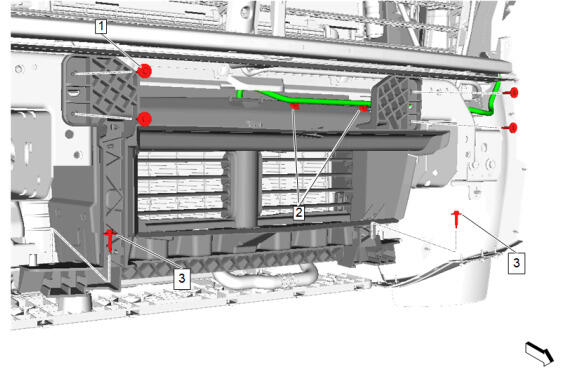

Front Bumper Shutter Bolt (1) - Remove [9x]
- Front Bumper Shutter (2) - Remove

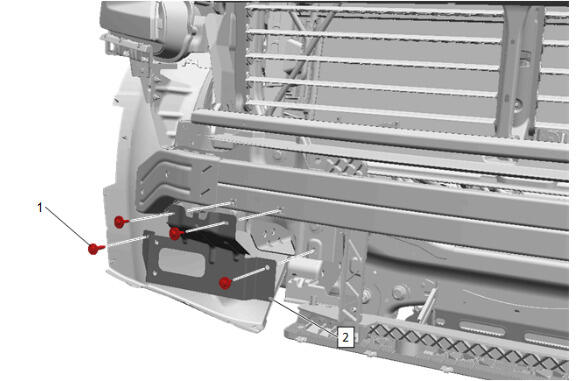

{If equipped} Forward Range Radar Bracket Bolt (1) - Remove [4x]
- {If equipped} Forward Range Radar Bracket (2) - Remove
- {If equipped} Disconnect the electrical connector.
Reposition the wiring harness.

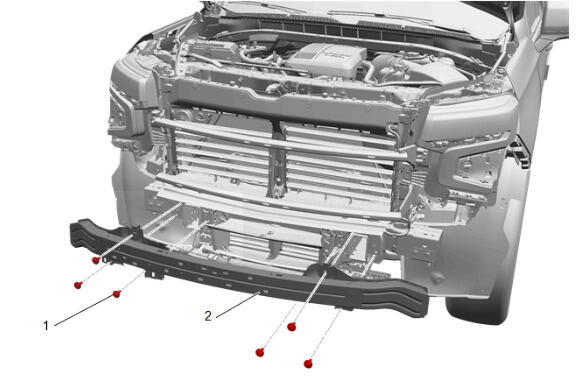

- Front Bumper Impact Bar Bolt (1) - Remove [6x]
- Front Bumper Impact Bar (2) - Remove
Wiring Harness Retainer (2) - Remove [2x]

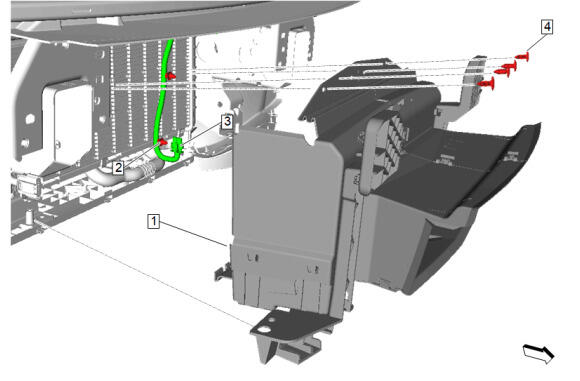

- Radiator Air Baffle Bracket Lower Bolt (1) - Remove [6x]
Radiator Air Lower Baffle Retainer (4) - Remove [4x]
- Reposition the radiator air front lower baffle assembly (1) forward.
- Release the clips that hold the shroud to the bottom of the charge air cooler.
- Remove the radiator air front lower baffle assembly (1).
- Wiring Harness Retainer (2) - Remove [2x]
- Electrical Connector (3) - Disconnect

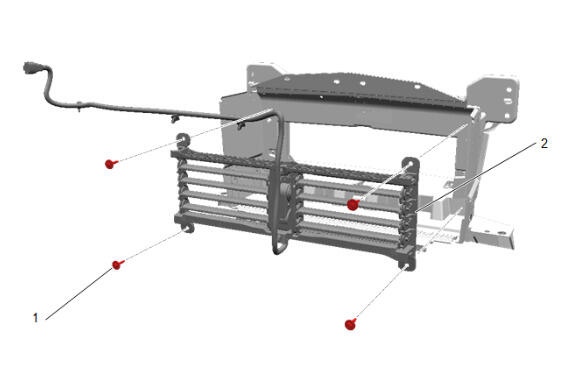

Front Bumper Lower Shutter Bolt (1) - Remove [4x]
- Remove the front bumper lower shutter (2) from the radiator air front lower baffle.
Forward range radar sensor will be with the bracket.
