Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

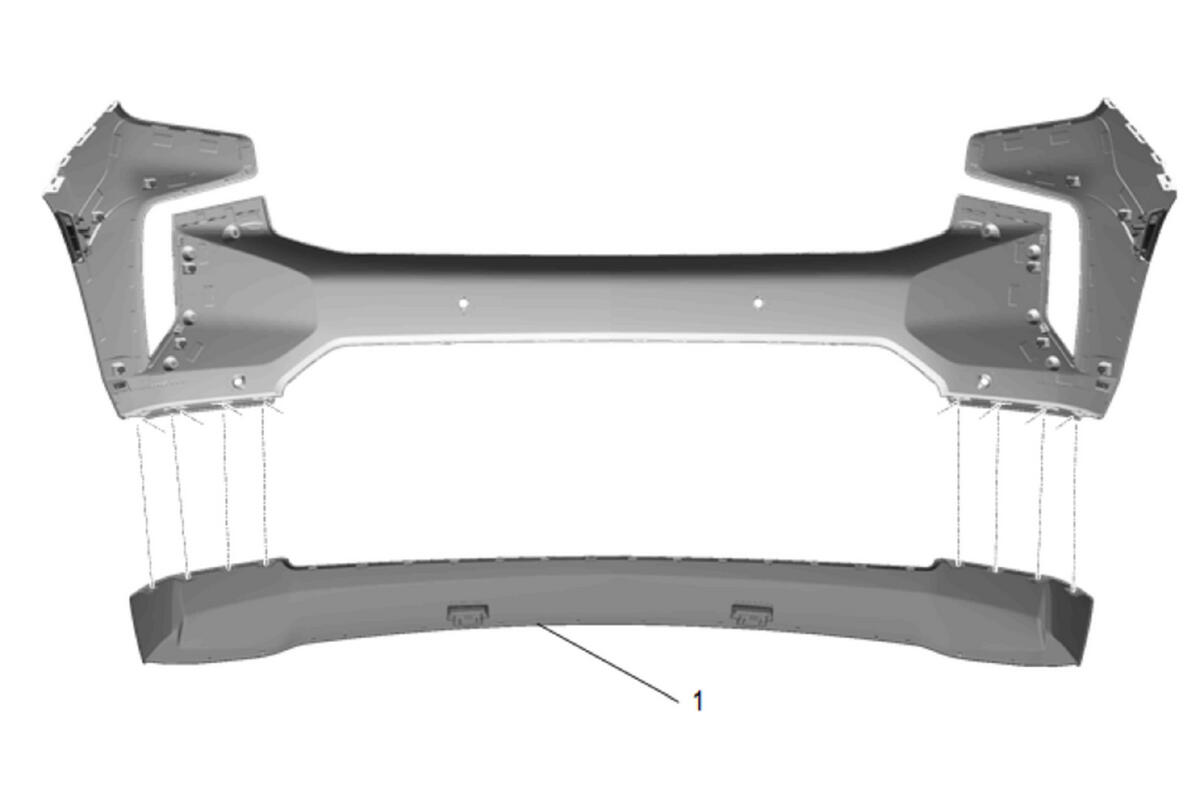

Install the front bumper lower fascia (1) to the front bumper upper fascia.
Courtesy of GENERAL MOTORS COMPANY

Install the front lower grille (2) and secure the retainers.
Front Grille Clip (1) - Install [8x]
Courtesy of GENERAL MOTORS COMPANY

Front Grille (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

Insert the 4 parking assist alarm sensors (1) into the housings.
Courtesy of GENERAL MOTORS COMPANY

Install the left and right side front side marker lamps (3).
Install the 4 left and right side front side marker lamp retainers (2).
Courtesy of GENERAL MOTORS COMPANY

Front Grille Filler (3) - Install
Front Bumper Filler Retainer (2) Install [2x]

CAUTION:

Front Bumper Fascia Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the left and right side front bumper fascia outer air ducts (2).
Install and tighten the 10 left and right side front bumper fascia bolts (1). Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the left and right side front bumper fascia reinforcements (2).
Install and tighten the 6 left and right side front bumper fascia reinforcement bolts (1). Fastener Specifications
Install the wiring harness.
Connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (without Front Fascia Extension) , or Front Bumper Fascia Removal and Installation (with Front Fascia Extension)
