Installation Procedure

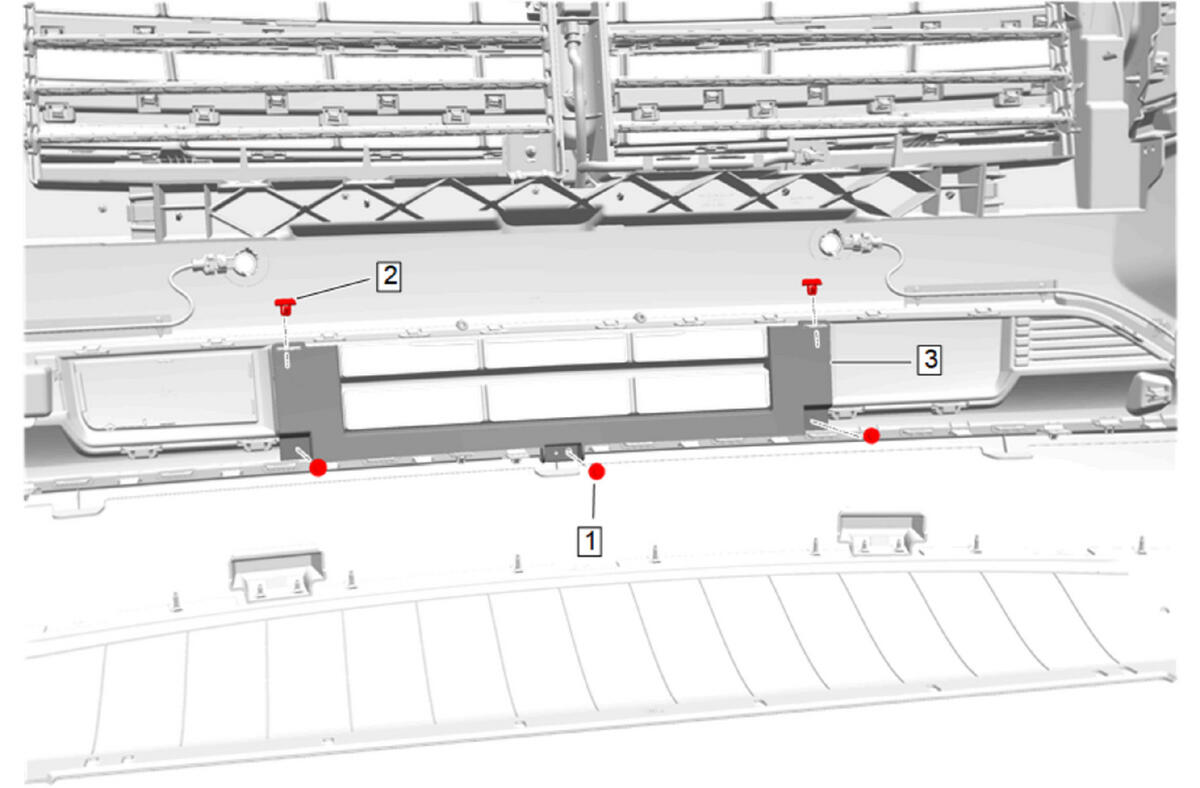

  1. GM5838159Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Seal (3) - Install

  2. Front Bumper Fascia Retainer (2) - Install [2x]
    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Bumper Fascia Bolt (1) - Install and tighten [3x] - Fastener Specifications
  4. GM5589691Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (without Front Fascia Extension) , or Front Bumper Fascia Removal and Installation (with Front Fascia Extension)
