Installation Procedure
With the aid of an assistant, install the fascia. (2)
- Install the 9 grille clips (1).
- {If equipped} Connect the electrical connectors. Inline Harness Connector End Views - Index
Install the front bumper fascia (1) to the left and right side front bumper fascia guides and the front headlamps.
- Remove the tape from both headlamps.
- CAUTION:
Refer to Fastener Caution .
Front Grille Bolt (1) - Install and tighten [6x] - Fastener Specifications
Intake Air Splash Shield (2) - Install
- Intake Air Baffle Retainer (1) - Install [9x]
Hood Secondary Latch Release Handle (2) - Install
- Hood Latch Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications
- NOTE:
Left side shown, right side similar.
Install and tighten the left and right side front bumper fascia support brace bolt (1). Fastener Specifications
Front Bumper Fascia Skid Plate Bolt (1) - Install and tighten [4x] - Fastener Specifications
- NOTE:
Left side shown, right side similar.
Tighten the 2 left and right side front bumper fascia guide bolts (1). Fastener Specifications
- Install and tighten the left and right side front bumper fascia bolt (2). Fastener Specifications
- NOTE:
Left side shown, right side similar.
Install the left and right side front wheelhouse liner.
- Install and tighten the left and right side front bumper fascia bolts (1) to the wheelhouse liner. Fastener Specifications
- NOTE:
Left side shown, right side similar.

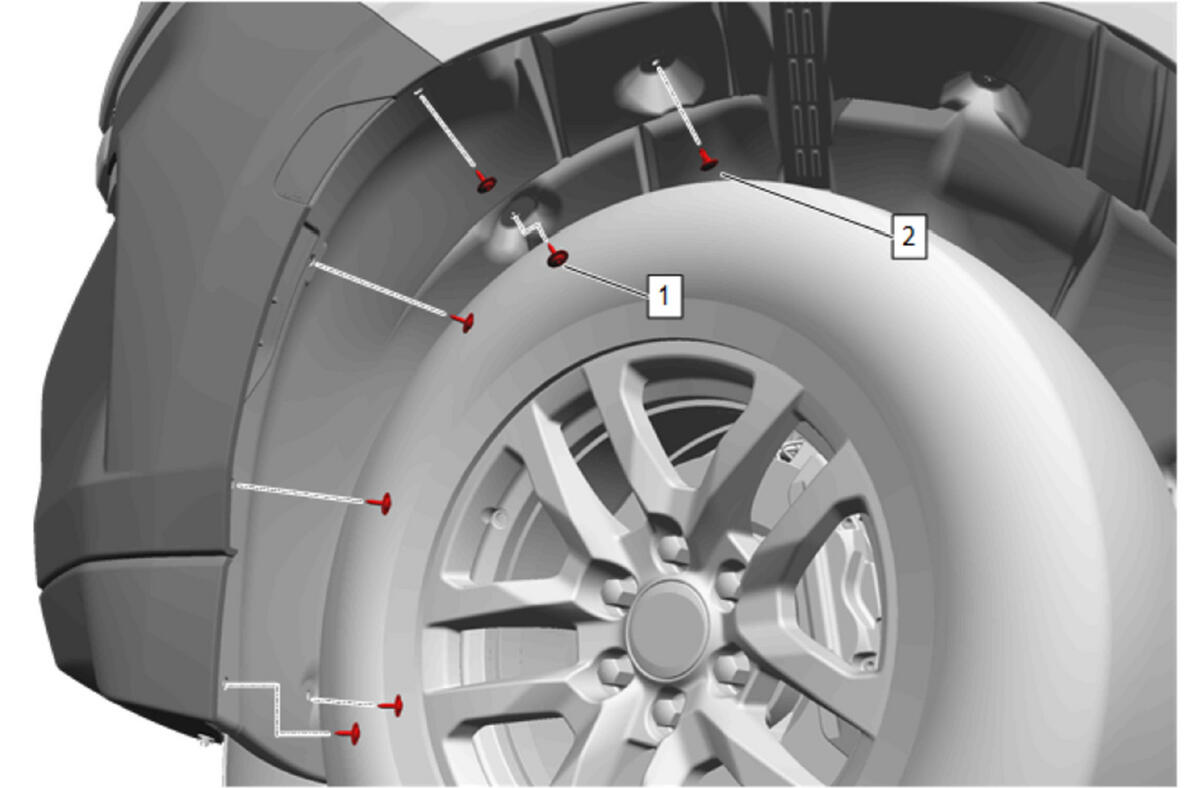

Install and tighten the 6 left and right side front wheelhouse liner bolts (1). Fastener Specifications
- Install the left and right side wheelhouse retainer (2).

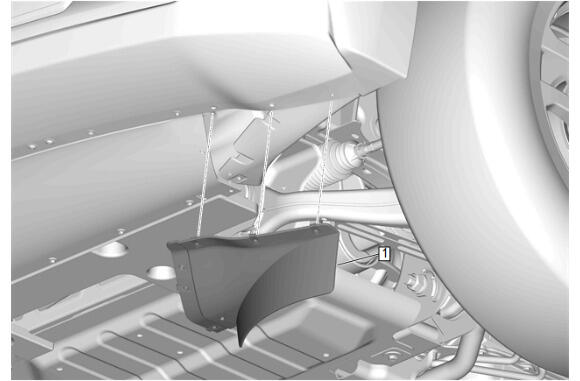

{If equipped} Front Tire Front Air Deflector (1) - Install
{If equipped} Front Tire Front Air Deflector Bolt (1) - Install and tighten [6x] - Fastener Specifications
- Lower the vehicle.
When installing the wiring harness connector of the front bumper fascia, verify that the wiring harness connector is properly installed. Failure to properly install the wiring harness connector, may result in improper performance, component damage, system malfunction, and damage to the wiring and or connectors.
