Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

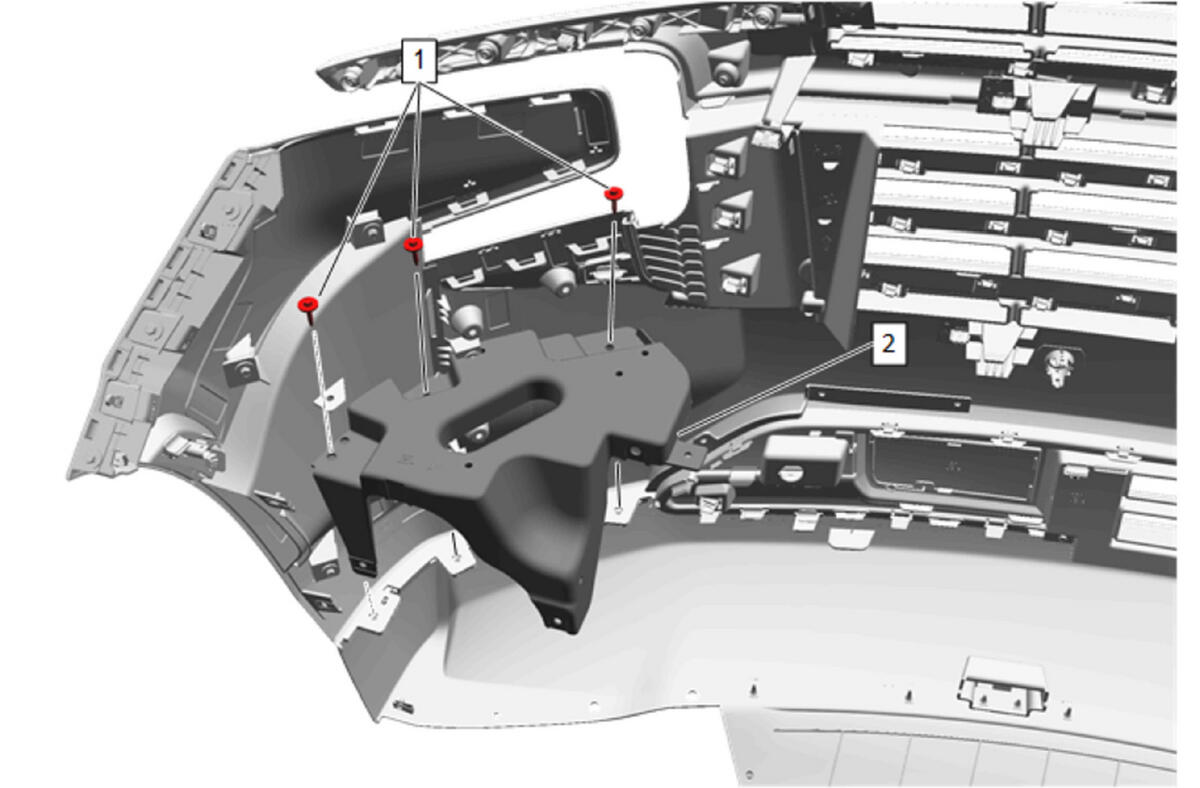

Front Bumper Fascia Reinforcement (2) - Install

CAUTION:

Refer to Fastener Caution .

Front Bumper Fascia Reinforcement Bolt (1) - Install and tighten [3x] - Fastener Specifications
Install the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (without Front Fascia Extension) , or Front Bumper Fascia Removal and Installation (with Front Fascia Extension)
