Installation Procedure

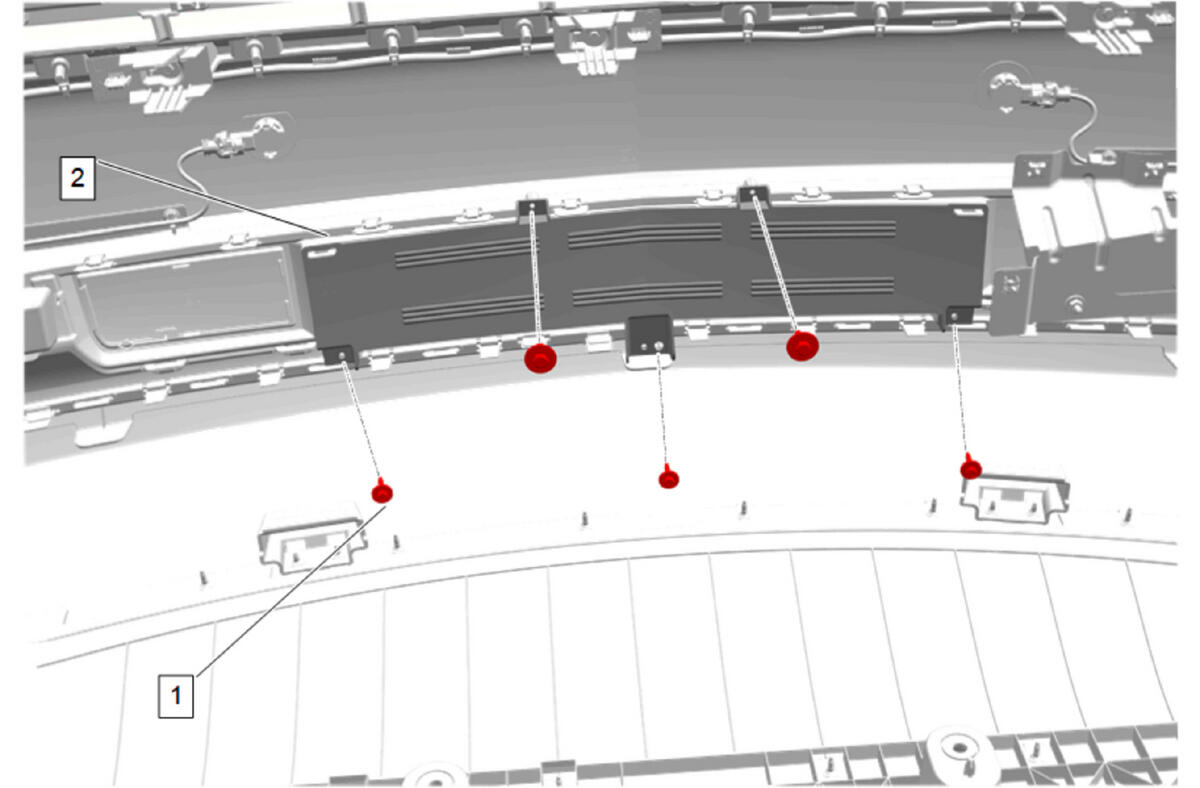

Front Bumper Fascia Lower Molding (2) - Install
- Front Bumper Fascia Molding Retainer (1) - Install [3x]

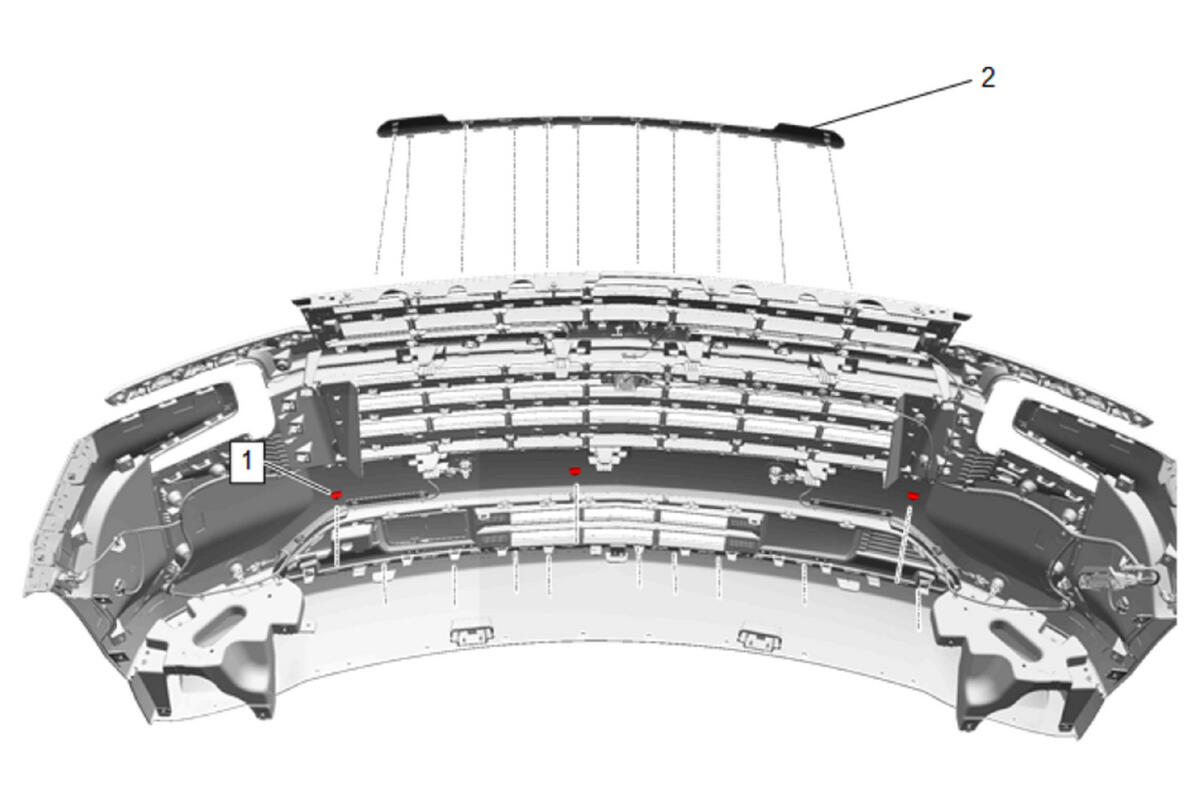

{If equipped} Front Grille Filler (3) - Install
- {If equipped} Front Bumper Filler Retainer (2) Install [2x]
- {If equipped} Front Bumper Fascia Bolt (1) - Install and tighten [3x] - Fastener Specifications
{If equipped} Front Bumper Fascia Seal (2) - Install
- {If equipped} Front Bumper Fascia Bolt (1) - Install and tighten [5x] - Fastener Specifications
Front Bumper Fascia (2) - Install - Front Bumper Fascia Removal and Installation (without Front Fascia Extension) , or Front Bumper Fascia Removal and Installation (with Front Fascia Extension)
CAUTION:
Refer to Fastener Caution .
