Installation Procedure

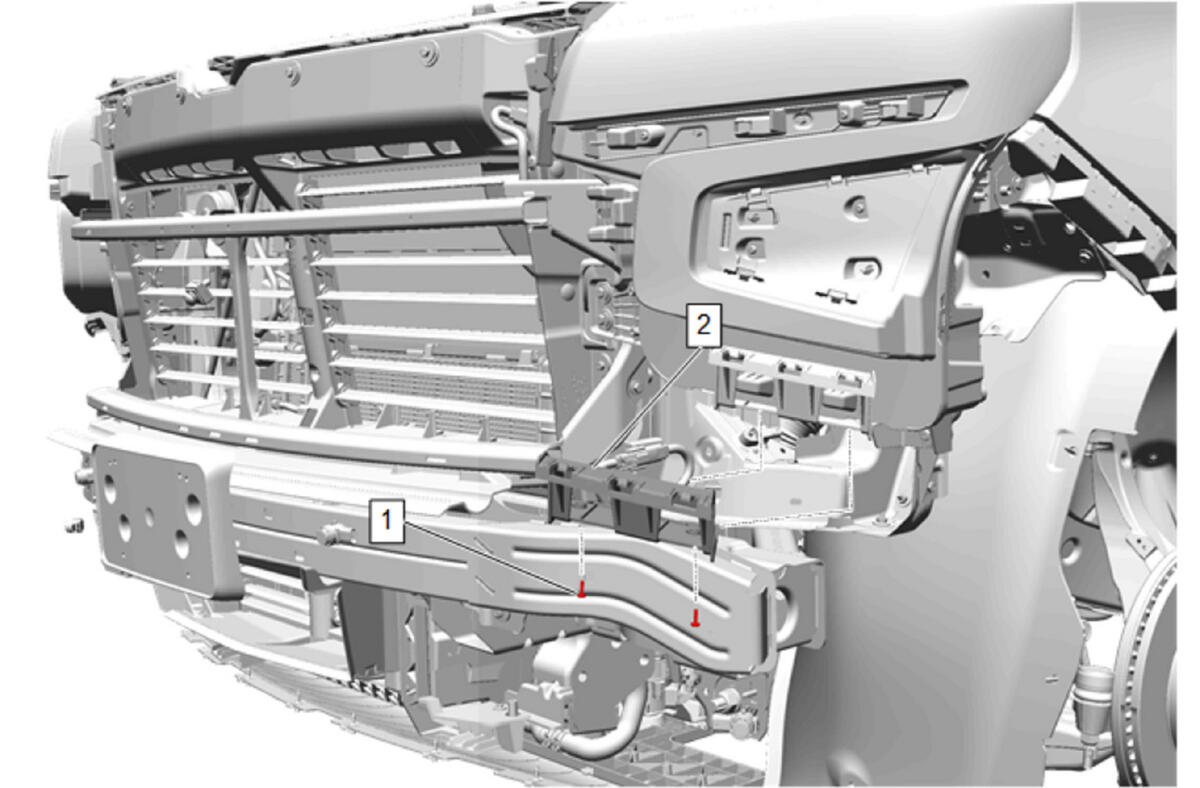

  1. GM5569732Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Headlamp Opening Bracket - Lower (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Bumper Fascia Headlamp Opening Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM5537676Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (without Front Fascia Extension) , or Front Bumper Fascia Removal and Installation (with Front Fascia Extension)
