Opening the Liftgate Without Electrical Power

  1. GM5138288Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Gain access to the liftgate from inside vehicle.

    Using a flat bladed tool, release the latch cover (1) to access the rear latch.

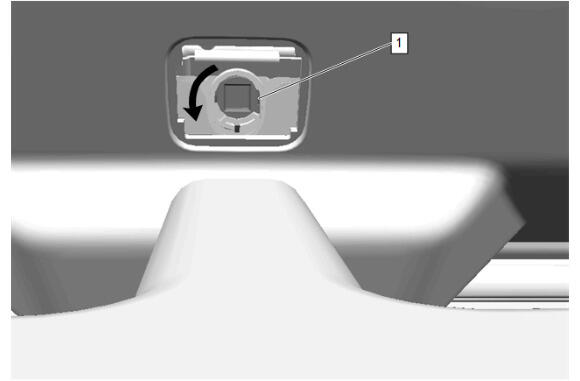

  2. GM5583339Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Rotation to release latch should be approximately 30 degrees. Excessive rotation can cause damage to the latch.

    Insert a flat bladed service type tool into the square hole (1) and turn it counterclockwise until the primary latch releases.
