Tumble Springs

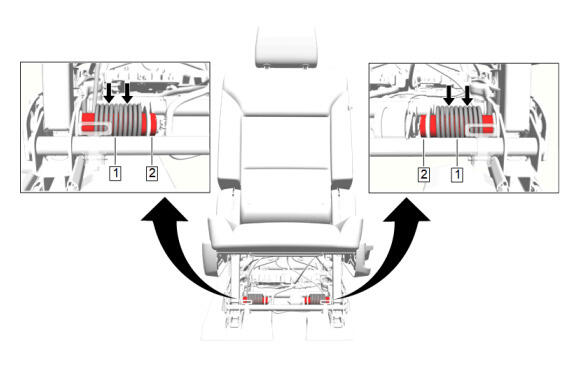

  1. GM5863673Courtesy of GENERAL MOTORS COMPANY

    With the seat in the upright position, apply AC Delco® Super Lube® on the rear seat tumble spring (1) and the rear seat tumble spring mandrel (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers

  2. GM5599034Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser Finish Cover (1) - Install
