Lower Rear Pivot Tube - Rear Side

Courtesy of GENERAL MOTORS COMPANY

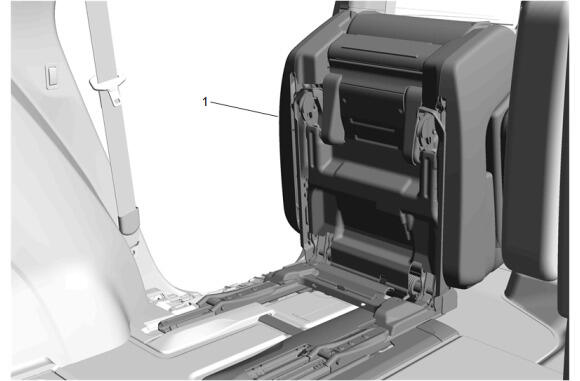

Place the rear seat (1) in the fold and tumble position.

Courtesy of GENERAL MOTORS COMPANY

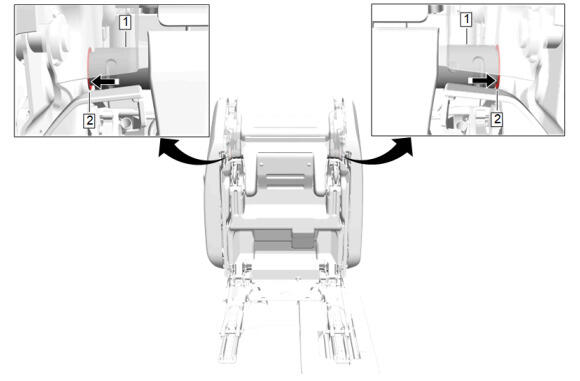

With the seat in the fold and tumble position, apply AC Delco® Super Lube® between the lower rear pivot tube (1) and the lower rear pivot tube bushing (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers
