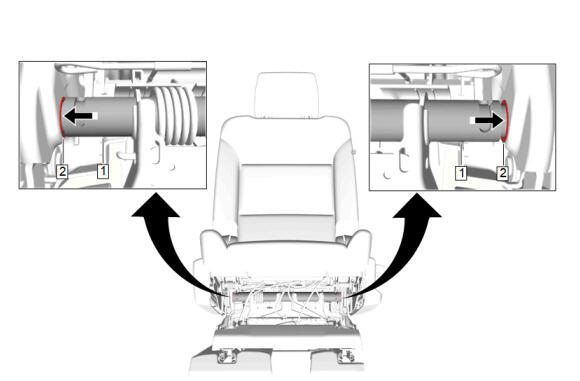

Lower Rear Pivot Tube - Front Side

Courtesy of GENERAL MOTORS COMPANY

With the seat in the upright position, apply AC Delco® Super Lube® between the lower rear pivot tube (1) and the lower rear pivot tube bushing (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers
