Lower Rear Pivot Joint Spacers

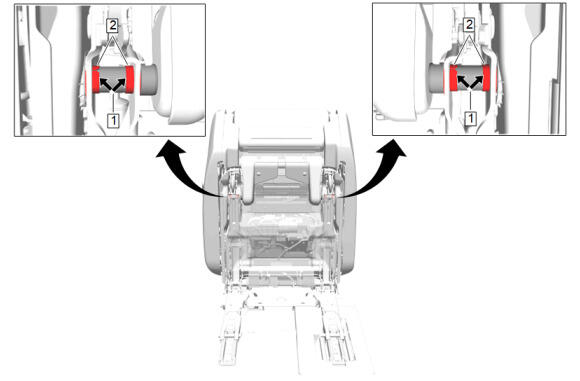

Reposition the rear seat cushion trim panel as necessary to access the lower rear pivot joint spacers (1).
- With the seat in the fold and tumble position, apply AC Delco® Super Lube® between the lower rear pivot joint spacer (1) and the lower rear pivot joint spacer bushings (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers
- Return the rear seat cushion trim panel to the original position.
