Lower Pivot Joints

Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.

Courtesy of GENERAL MOTORS COMPANY

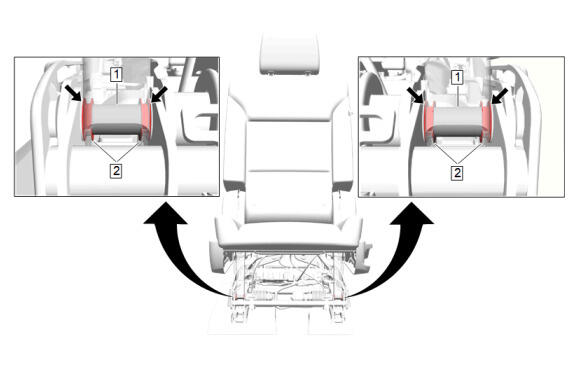

With the seat in the upright position, apply AC Delco® Super Lube® between the lower pivot leg bolt (1) and the lower pivot leg bushings (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers
