Removal Procedure

  1. GM5615181Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Back Cover and Pad (1) - Remove - 3rd Row Seat Back Cover and Pad Removal and Installation (60 Percent)

  2. GM5615184Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Cover Pin (1) - Remove [2x]

  3. 3rd Row Seat Hinge Finish Cover - Outer (2) - Remove
  4. GM5615189Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Hinge Finish Cover Pin (1) - Remove [2x]

  5. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) - Remove
  6. GM5617322Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  7. Disconnect both 3rd row seat back actuator cable ends from the seat back latch.
  8. Using a suitable trim tool, release the cable retainers (1) from the seat back frame.
  9. Folding 3rd Row Seat Back Actuator Bolt (2) - Remove [2x]
  10. Folding 3rd Row Seat Back Actuator (3) - Remove
  11. GM5615210Courtesy of GENERAL MOTORS COMPANY

    Disconnect the 3rd row seat back latch cable end from the seat back latch.

  12. Using a suitable trim tool, release the cable retainers (1) from the seat back frame.
  13. 3rd Row Seat Back Latch Cable (2) - Remove

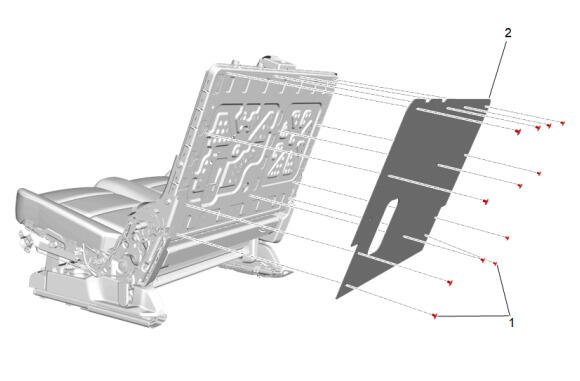

  14. GM5609539Courtesy of GENERAL MOTORS COMPANY

    Using a suitable trim tool, release the retainers.

  15. Rear Seat Back Cover Retainer (1) - Remove [8x]
  16. 3rd Row Seat Back Panel (2) - Remove
  17. GM5615211Courtesy of GENERAL MOTORS COMPANY

    Disconnect and reposition harness as necessary.

  18. 3rd Row Seat Back Frame Bolt (1) - Remove [4x]
  19. 3rd Row Seat Back Frame (2) - Remove
