Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM5569956Courtesy of GENERAL MOTORS COMPANY

    Quarter Window Trim Finish Panel Bolt Cap (1) - Remove

  3. Quarter Window Trim Finish Panel Bolt (2) - Remove
  4. GM5569959Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

    5. NOTE:

    The body lock pillar upper trim panel does not need to be fully removed from the vehicle.

  5. Body Lock Pillar Upper Trim Panel (1) - Reposition
  6. GM5591923Courtesy of GENERAL MOTORS COMPANY

    Quarter Window Trim Finish Panel Bolt Cap (1) - Remove

  7. Quarter Window Trim Finish Panel Bolt (2) - Remove
  8. GM5591925Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

    9. NOTE:

    The body lock pillar upper trim panel does not need to be fully removed from the vehicle.

  9. Body Lock Pillar Upper Trim Panel (1) - Reposition
  10. GM5568511Courtesy of GENERAL MOTORS COMPANY

    Insert a suitable flat-bladed plastic trim tool between the rear seat position center reading and courtesy lamp (1) and headlining trim panel (2).

  11. Separate the rear seat position center reading and courtesy lamp (1) from the headlining trim panel (2).
  12. GM5568512Courtesy of GENERAL MOTORS COMPANY

    Pull downward to release the retaining tabs.

  13. Disconnect the electrical connector.
  14. Rear Seat Position Center Reading and Courtesy Lamp - Rear (1) - Remove
  15. GM5568519Courtesy of GENERAL MOTORS COMPANY

    Insert a suitable flat-bladed plastic trim tool between the cargo center courtesy lamp (1) and headlining trim panel (2).

  16. Separate the cargo center courtesy lamp (1) from the headlining trim panel (2).
  17. GM5568521Courtesy of GENERAL MOTORS COMPANY

    Pull downward to release the retaining tabs.

  18. Disconnect the electrical connector.
  19. Cargo Center Courtesy Lamp (1) - Remove
  20. GM5577690Courtesy of GENERAL MOTORS COMPANY

    Place the rear 2 coat hook (2) in the open position.

  21. Coat Hook Bolt (1) - Remove [2x]
  22. Coat Hook (2) - Remove [2x]
  23. GM5572488Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  24. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.
  25. GM5572493Courtesy of GENERAL MOTORS COMPANY

    Body Side Rear Window Garnish Molding Bolt (1) - Remove

  26. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Remove
  27. GM5573149Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding Bolt (1) - Remove

  28. GM5573150Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

    29. NOTE:

    The body rear corner upper garnish molding does not need to be fully removed from the vehicle.

  29. Body Rear Corner Upper Garnish Molding (1) - Reposition
  30. GM5591927Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  31. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.
  32. GM5591928Courtesy of GENERAL MOTORS COMPANY

    Body Side Rear Window Garnish Molding Bolt (1) - Remove

  33. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Remove
  34. GM5591929Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding Bolt (1) - Remove

  35. GM5591930Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

    36. NOTE:

    The body rear corner upper garnish molding does not need to be fully removed from the vehicle.

  36. Body Rear Corner Upper Garnish Molding (1) - Reposition
  37. GM5598913Courtesy of GENERAL MOTORS COMPANY

    Disconnect the rear seat belt mini-latch (1).

  38. GM5613311Courtesy of GENERAL MOTORS COMPANY

    Using a suitable plastic trim tool, release the retaining tabs.

  39. Rear Seat Center Belt Opening Bezel-3rd Row Seat (1) - Remove
  40. Feed the 3rd row seat center belt through the rear seat center belt opening bezel (1).
  41. Feed the back half of the seat belt opening bezel through the headlining opening.
  42. GM5580387Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Guide Cover (1) - Open

  43. Rear Seat Belt Guide Bolt (2) - Remove [2x]
  44. GM5606263Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Guide (1) - Reposition

  45. Using a suitable trim tool, gently pry and pull downwards on the rear seat belt opening bezel (2) to release the retaining clip on both sides of the vehicle.
  46. Rear Seat Belt Opening Bezel (2) - Remove [2x]
  47. Pull down at the rear of the headlining front trim panel to disengage the retaining clips and to gain access to the trim panel retainers holding the headlining rear trim panel.

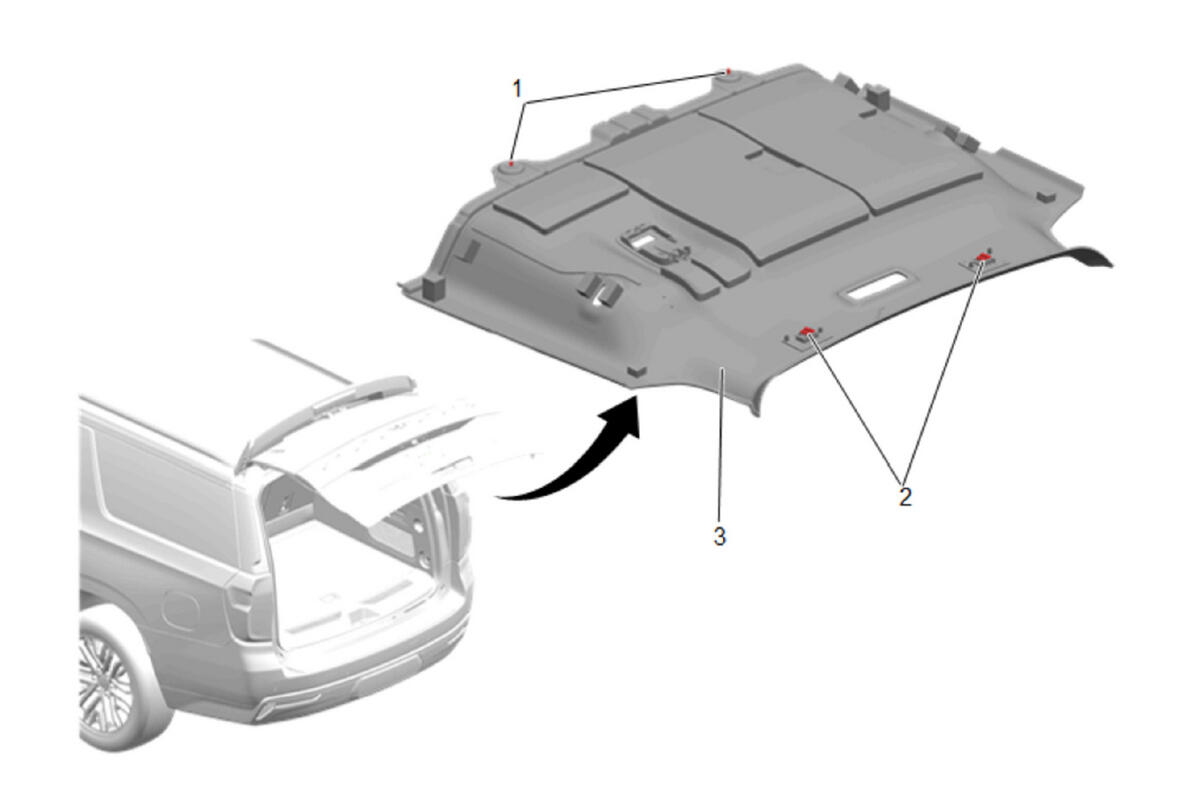

  48. GM5660867Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Prior to removal, note the routing of the wire harness to aid in reassembly and to ensure proper installation.

    Headlining Trim Panel Retainer (1) - Remove [2x]

  49. Disengage the retaining clips (2) at the rear of the headliner rear trim panel.
  50. Lower the headlining rear trim panel (3).
  51. Disconnect the electrical connector.
  52. With the aid of an assistant, remove the headlining rear trim panel (3) from the vehicle through the liftgate opening.
  53. Transfer components as necessary.
  54. If transferring or replacing the wiring harness.
    • Take note of the wiring harness locations and measure the harness lead length prior to removing. Mark harness routing locations on new headlining trim panel prior to harness removal.
      • NOTE:

      Use a camera to take pictures and use a pencil to mark the new headlining trim panel.

    • Use fiber or plastic trim tool to assist in removing the wiring harness from the headlining trim panel, taking care not to damage the harness.
    • Remove excess glue and material from the wiring harness and re-tape areas where the tape was removed or damaged.
