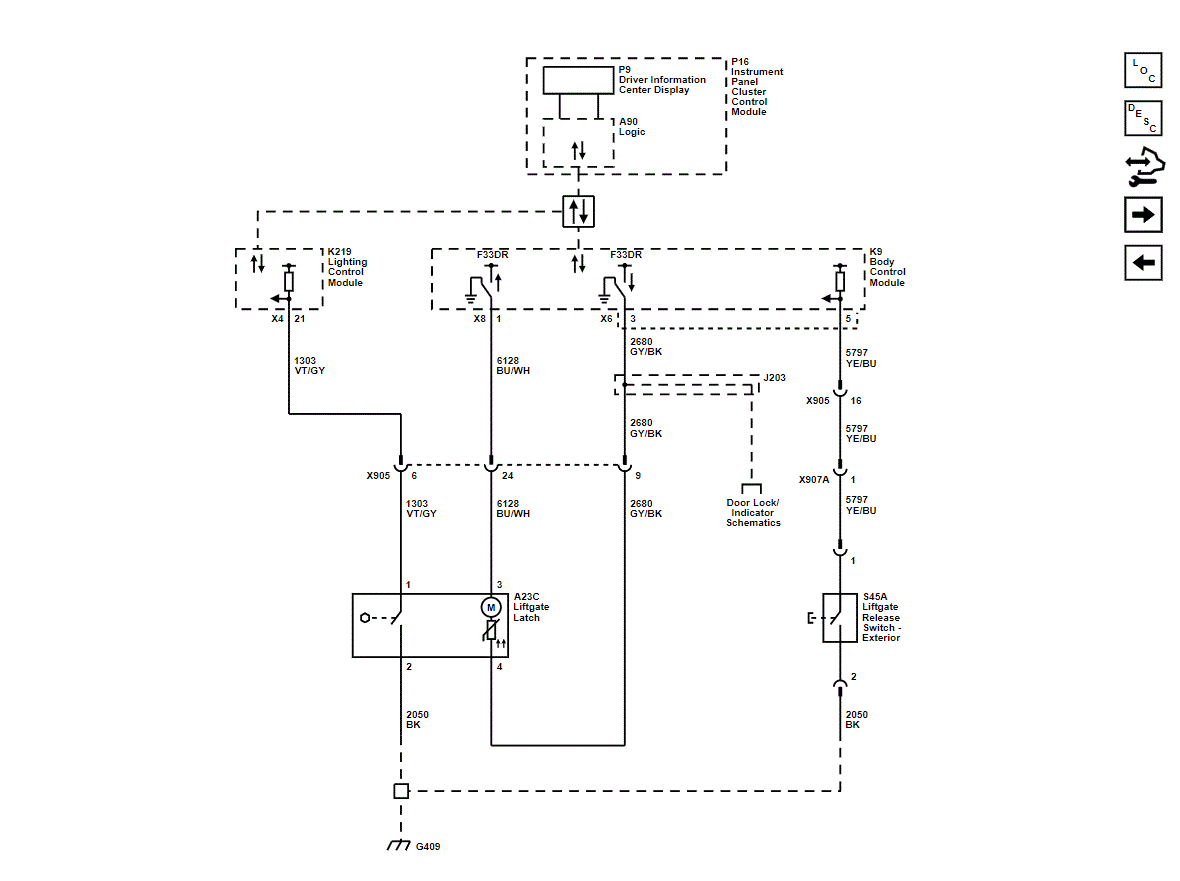

Home >> Chevrolet >> 2022 >> Tahoe PPV, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Body Interior >> Vehicle Access - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Release Systems Wiring Schematics >> Liftgate Release (TB4)
