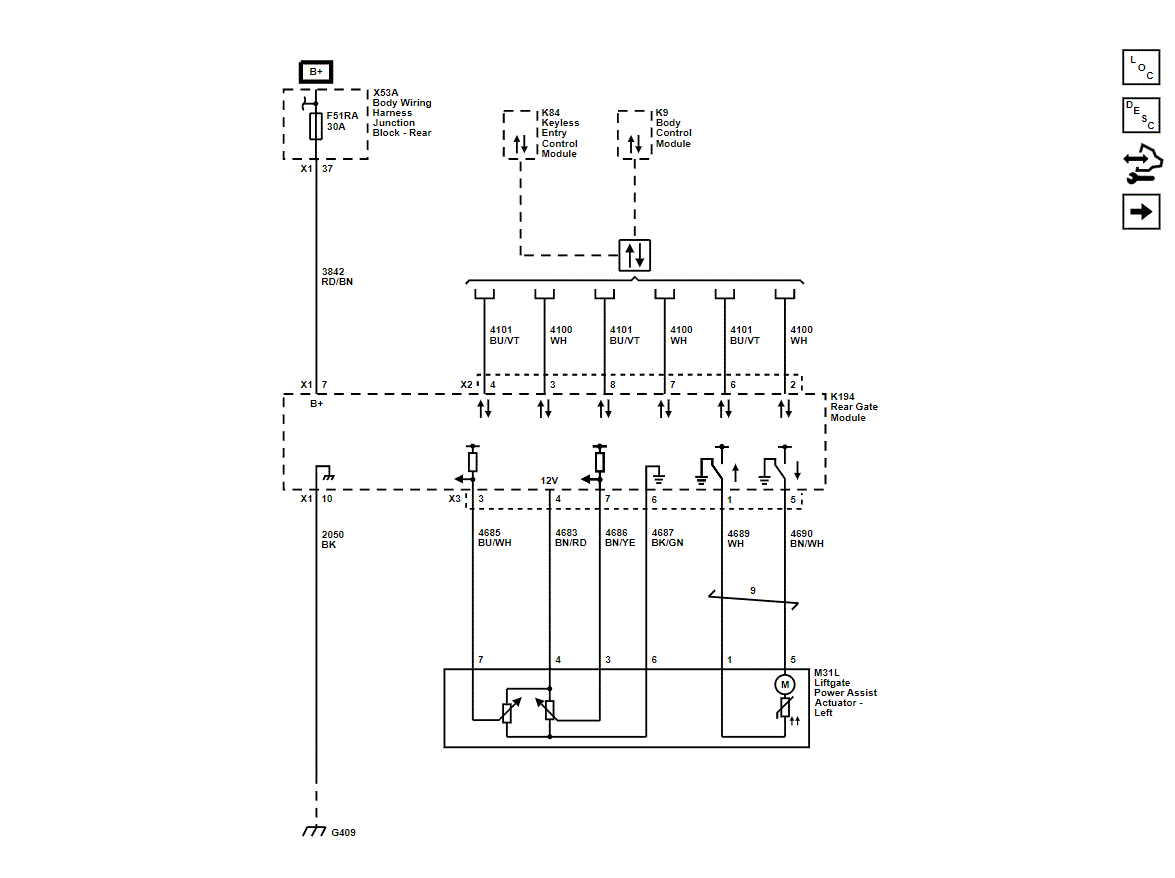

Rear Gate Module Power, Ground, Serial Data, and Liftgate Motor (TC2)

GM5861272

Courtesy of GENERAL MOTORS COMPANY
