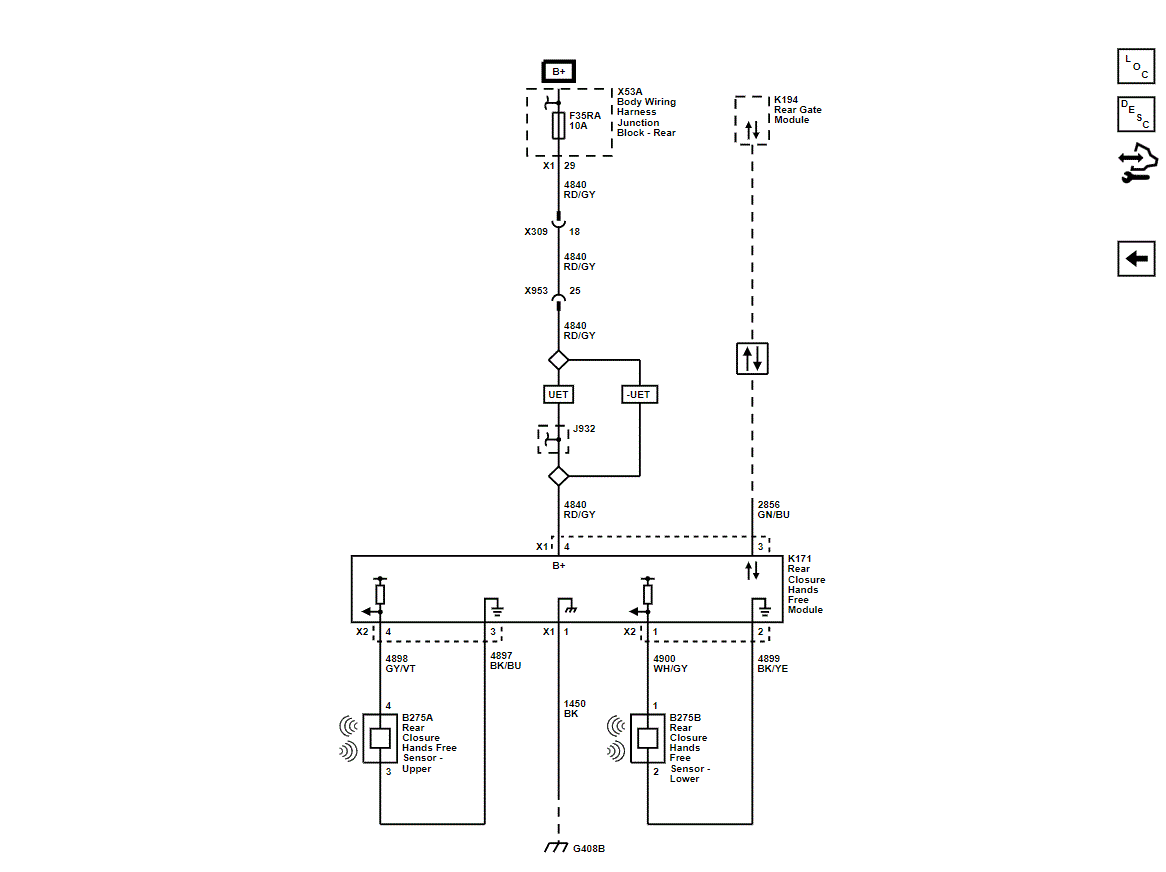

Home >> Chevrolet >> 2022 >> Tahoe PPV, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Body Interior >> Vehicle Access - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Liftgate Wiring Schematics >> Rear Closure Hands Free Module (TC2)
