Ignition and Start Switch Replacement (with BTM)

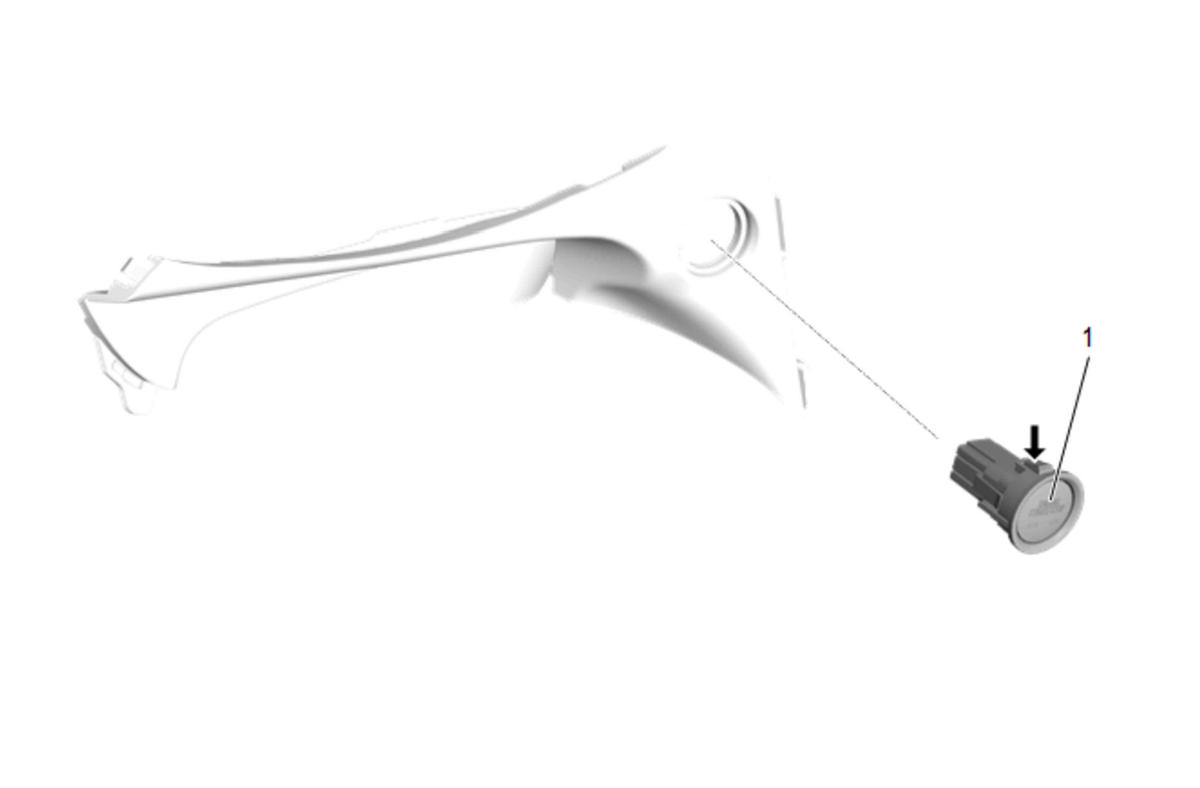

GM5668847Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Trim Plate Replacement
  2. Instrument Panel Lower Trim Plate Applique Replacement
  3. Instrument Panel Center Trim Plate Applique Replacement
1 Ignition and Start Switch
Procedure
Use a flat bladed plastic tool to remove.
