X110 Forward Lamp Wiring Harness to Front Headlamp - Driver (SBW+T3N+TUJ)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

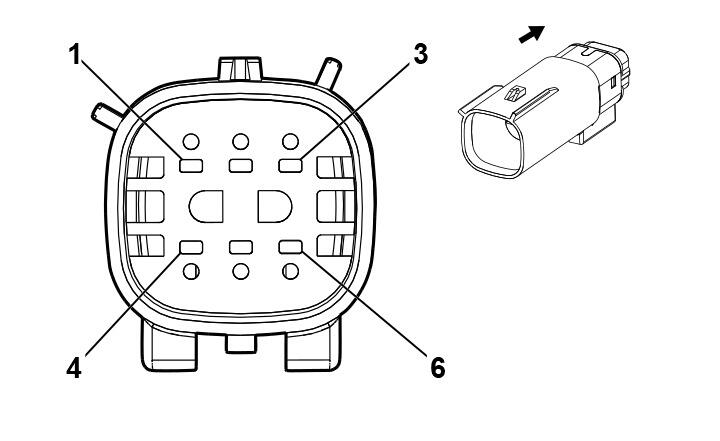

Connector Part Information
- Harness Type: Forward Lamp Wiring Harness
- OEM Connector: 33472-0668
- Service Connector: 19370349
- Description: 6-Way F 1.5 MX Series, Sealed (GY)
|
Connector Part Information
- Harness Type: Front Headlamp - Driver
- OEM Connector: Not Available
- Service Connector: Service by Harness
- Description: 6-Way M (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| II |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1 |
YE |
712 |
I |
SBW+T3N+TUJ |
Left Headlamp Low Beam Control |
1 |
1 |
YE |
712 |
II |
SBW+T3N+TUJ |
| 2 |
1 |
GN / WH |
711 |
I |
SBW+T3N+TUJ |
Left Headlamp High Beam Control |
2 |
1 |
WH |
711 |
II |
SBW+T3N+TUJ |
| 3 |
1 |
BK |
50 |
I |
SBW+T3N+TUJ |
Ground |
3 |
1 |
BK |
50 |
II |
SBW+T3N+TUJ |
| 4 |
0.5 |
VT / GY |
709 |
I |
SBW+T3N+TUJ |
Left Park Lamp Control |
4 |
0.5 |
VT / GY |
709 |
II |
SBW+T3N+TUJ |
| 5 |
0.5 |
VT / GY |
709 |
I |
SBW+T3N+TUJ |
Left Park Lamp Control |
5 |
0.5 |
VT / GY |
709 |
II |
SBW+T3N+TUJ |
| 6 |
0.5 |
BK |
50 |
I |
SBW+T3N+TUJ |
Ground |
6 |
0.5 |
BK |
50 |
II |
SBW+T3N+TUJ |
