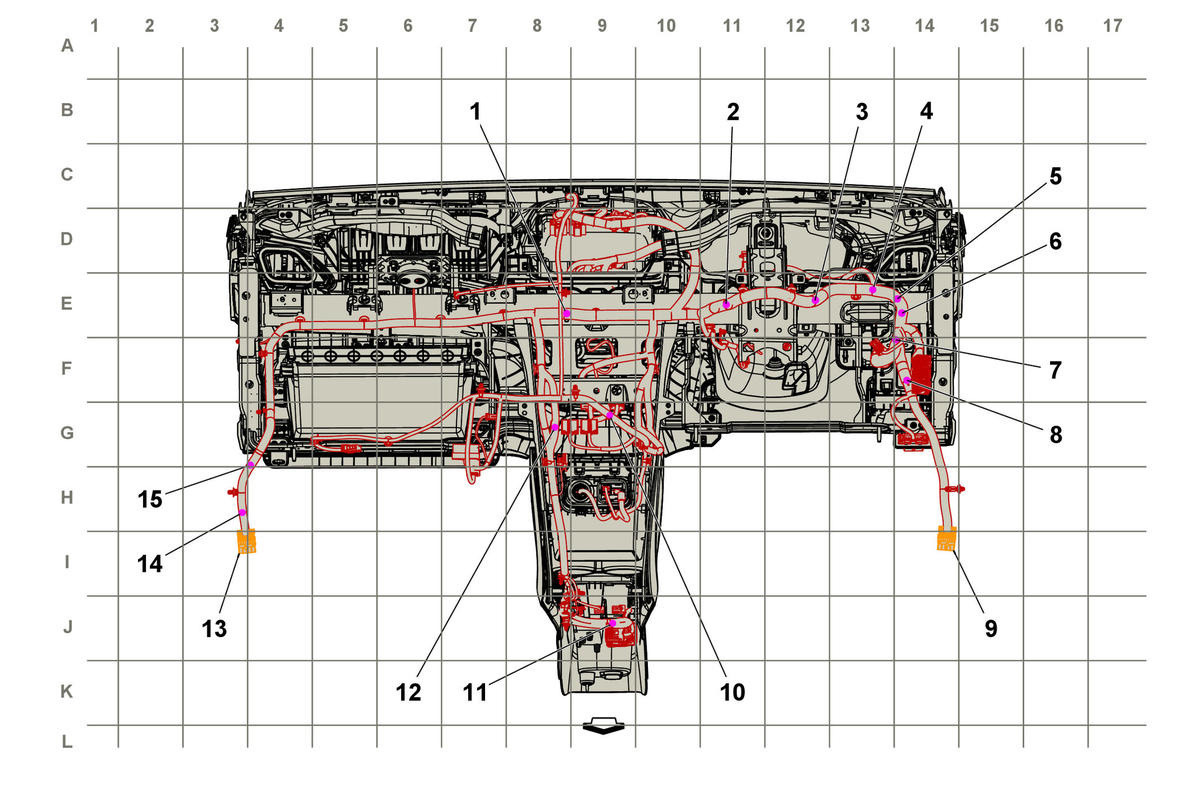

Instrument Panel Harness Routing - Behind Instrument Panel Compartment (LHD)
Instrument Panel Harness Routing - Behind Instrument Panel Compartment (LHD)
| Harness Name | Callout |
|---|---|
| J220 Instrument Panel Wiring Harness | 1 |
| J212 Instrument Panel Wiring Harness | 2 |
| J210 Instrument Panel Wiring Harness | 3 |
| J205 Instrument Panel Wiring Harness | 4 |
| J203 Instrument Panel Wiring Harness | 5 |
| J202 Instrument Panel Wiring Harness | 6 |
| J206 Instrument Panel Wiring Harness | 7 |
| J200 Instrument Panel Wiring Harness | 8 |
| X200 Instrument Panel Wiring Harness to Body Wiring Harness X200 Instrument Panel Wiring Harness to Body Wiring Harness ( ) | 9 |
| J217 Instrument Panel Wiring Harness | 10 |
| J222 Instrument Panel Wiring Harness | 11 |
| J221 Instrument Panel Wiring Harness | 12 |
