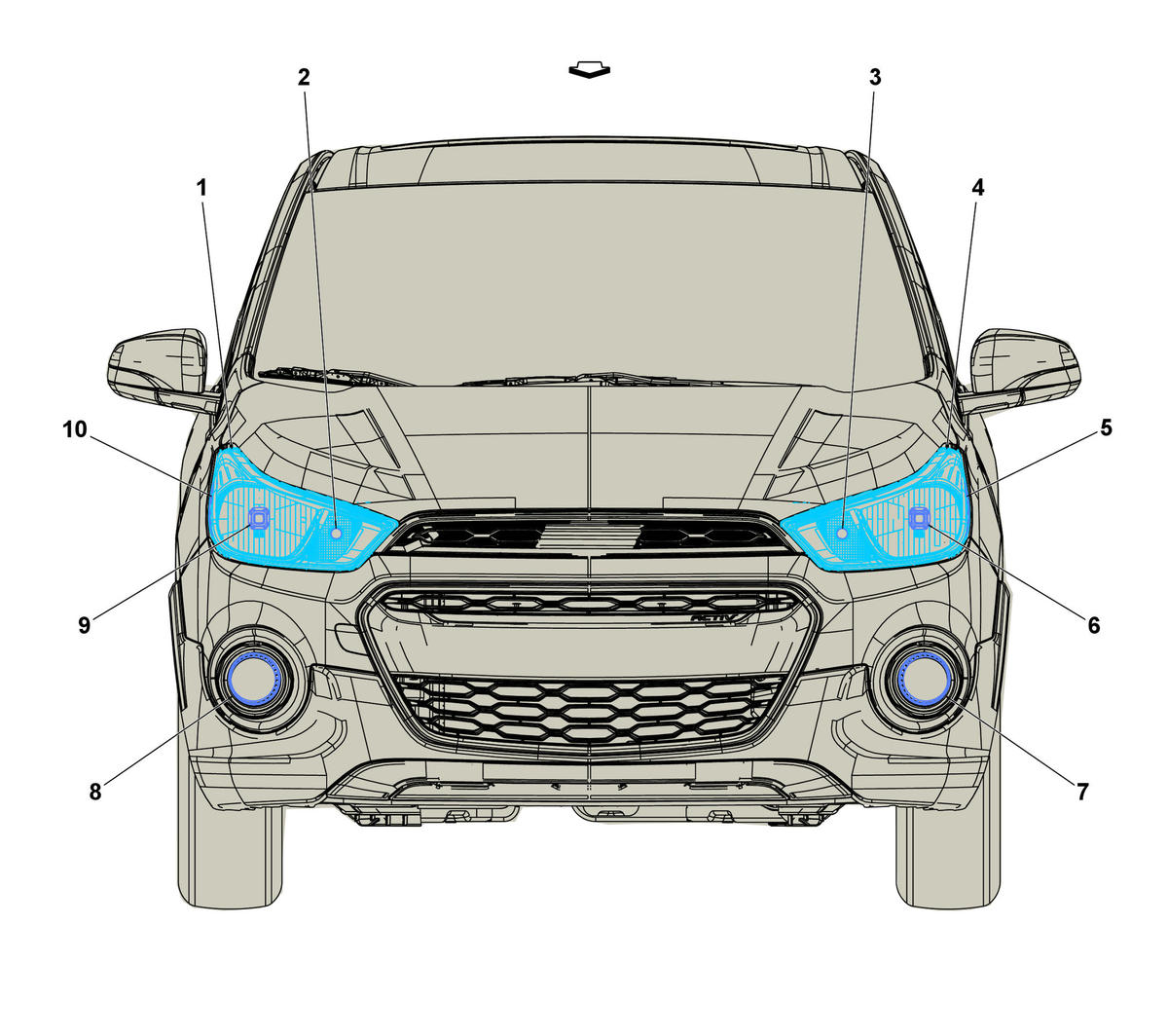

Front of the Vehicle Components (SBM+T3U)
Front of the Vehicle Components (SBM+T3U)
| Component Name | Callout |
|---|---|
| E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right X1 (SBM+T3W) , or E13RA Headlamp Assembly - Right X2 (SBM+T3W) , or E13RA Headlamp Assembly - Right X3 (SBM+T3W) | 1 |
| E4P Park/Turn Signal Lamp - Right E4P Park/Turn Signal Lamp - Right (SBM+T3W) | 2 |
| E4N Park/Turn Signal Lamp - Left E4N Park/Turn Signal Lamp - Left (SBM+T3W) | 3 |
| E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left X1 (SBM+T3W) , or E13LA Headlamp Assembly - Left X2 (SBM+T3W) , or E13LA Headlamp Assembly - Left X3 (SBM+T3W) | 4 |
| E2LF Side Marker Lamp - Left Front | 5 |
| E4G Headlamp - Left Low Beam | 6 |
| E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (T3U) | 7 |
| E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (T3U) | 8 |
| E4H Headlamp - Right Low Beam | 9 |
| E2RF Side Marker Lamp - Right Front | 10 |
