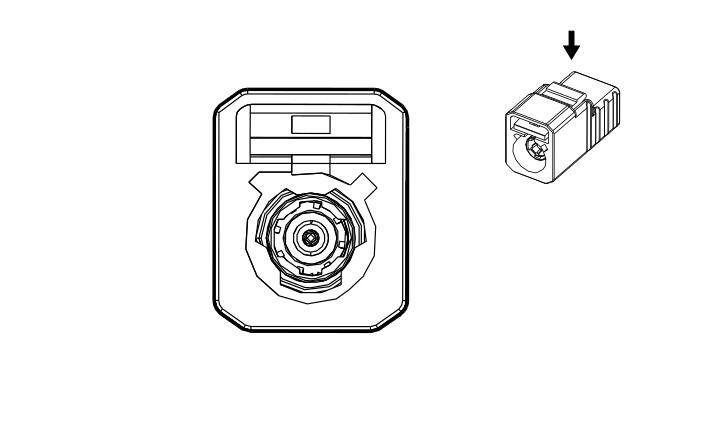

A11 Radio X3 (U71+(IP0/IP1))
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | No Tool Required | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| - | - | Coax Cable | - | (AM/FM) Antenna RF Signal | I | - |
