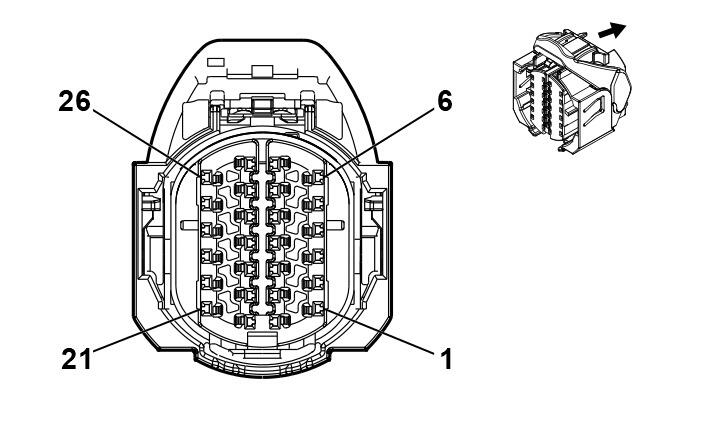

T12 Automatic Transmission X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Engine Wiring Harness
- OEM Connector: 13528030
- Service Connector: 13528030
- Description: 26-Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19331733 |
J-35616-12 (BU) |
J-38125-215A |
| II |
84963773 |
J-35616-12 (BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/WH |
585 |
Transmission Fluid Temperature Sensor Signal |
I |
- |
| 2 |
0.5 |
BK/VT |
7796 |
Transmission Control Sensors Low Reference 4 |
I |
- |
| 3 |
0.5 |
YE/BK |
7817 |
Transmission Baseline Oil System Pressure Sensor Signal |
I |
- |
| 4 |
0.5 |
VT/RD |
7795 |
Transmission Control Sensors 5 Volt Reference 4 |
I |
- |
| 5 |
0.75 |
BU/RD |
7803 |
Transmission Control Sensors 12 Volt Reference 5 |
I |
- |
| 6 |
0.75 |
BN/VT |
7782 |
Synchronizer Pressure Control Valve Control 1 |
I |
- |
| 7 |
0.75 |
BU/GY |
7783 |
Synchronizer Pressure Control Valve Control 2 |
I |
- |
| 8 |
0.75 |
GN/BK |
7784 |
Synchronizer Pressure Control Valve Control 3 |
I |
- |
| 9 |
0.75 |
WH/VT |
7785 |
Synchronizer Pressure Control Valve Control 4 |
I |
- |
| 10 |
1.5 |
BN/RD |
7800 |
Transmission Control Sensors 12 Volt Reference 4 |
II |
- |
| 11 |
0.75 |
GY/BN |
7787 |
Synchronizer Actuation Selection Valve Control |
I |
- |
| 12 |
0.75 |
GN/RD |
7804 |
Transmission Control Sensors 12 Volt Reference 6 |
I |
- |
| 13 |
0.75 |
YE/GN |
7786 |
Synchronizer Pressure Control Valve Control 5 |
I |
- |
| 14 |
0.5 |
BK/BU |
6253 |
Transmission Input Speed Sensor Ground |
I |
- |
| 15 |
0.5 |
BU/WH |
4174 |
Transmission Speed Input High Signal |
I |
- |
| 16 |
0.5 |
YE/BN |
3604 |
Transmission Output Speed Sensor Control |
I |
- |
| 17 |
0.5 |
GY/BU |
6358 |
Output Speed Signal |
I |
- |
| 18 |
0.5 |
BK/GN |
7794 |
Transmission Control Sensors Low Reference 3 |
I |
- |
| 19 |
0.5 |
BN/YE |
7811 |
Synchronizer Position Signal 1 |
I |
- |
| 20 |
0.5 |
GN/RD |
7793 |
Transmission Control Sensors 5 Volt Reference 3 |
I |
- |
| 21 |
0.5 |
BN/WH |
6254 |
Transmission Input Speed Sensor Signal |
I |
- |
| 22 |
0.5 |
VT/WH |
4173 |
Transmission Speed Input Low Signal |
I |
- |
| 23 |
0.5 |
GN/WH |
7815 |
Synchronizer Position Signal 5 |
I |
- |
| 24 |
0.5 |
WH/BK |
7812 |
Synchronizer Position Signal 2 |
I |
- |
| 25 |
0.5 |
GY/VT |
7813 |
Synchronizer Position Signal 3 |
I |
- |
| 26 |
0.5 |
BU/YE |
7814 |
Synchronizer Position Signal 4 |
I |
- |
