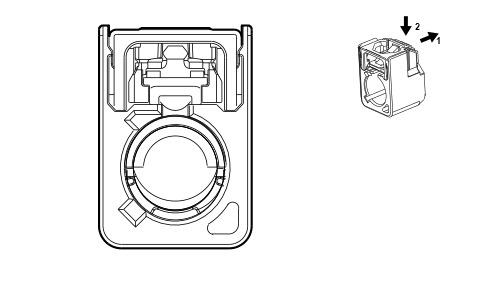

K73 Telematic Control Module X3 (UDA/UE1/UER)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Instrument Panel Wiring Harness COAX
- OEM Connector: 13516760
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F Coax Type (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
(GPS/Cell) Coaxial Antenna Cell/GPS combined Signal |
I |
- |
