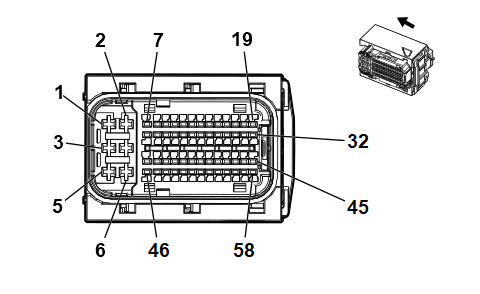

K71 Transmission Control Module X2

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	84963773	J-35616-12 (BU)	J-38125-215A
II	Not Available	J-35616-35 (VT)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	2	BK/BU	7340	Camshaft W 2 Low Reference	II	-
2 - 3	-	-	-	Not Occupied	-	-
4	2	BK/WH	1051	Signal Ground	II	-
5 - 10	-	-	-	Not Occupied	-	-
11	0.5	VT/YE	6854	Transmission Tap Up Switch Signal	I	-
12	-	-	-	Not Occupied	-	-
13	0.5	VT/WH	239	Run/Crank Ignition 1 Voltage	I	-
14	-	-	-	Not Occupied	-	-
15	0.5	WH	4978	AUTOSAR CAN Bus [-] 2 Serial Data	I	-
16	0.5	BU/YE	4979	AUTOSAR CAN Bus [+] 2 Serial Data	I	-
17 - 20	-	-	-	Not Occupied	-	-
21	0.5	YE/BU	6855	Transmission Tap Down Switch Signal	I	-
22 - 23	-	-	-	Not Occupied	-	-
24	0.5	BK/GY	3737	Transmission Tap Down Switch Low Reference	I	-
25 - 26	-	-	-	Not Occupied	-	-
27	0.5	VT/BU	6091	Crankshaft Position Sensor Replicated Signal	I	-
28	-	-	-	Not Occupied	-	-
29	0.5	WH	4978	AUTOSAR CAN Bus [-] 2 Serial Data	I	-
30	0.5	BU/YE	4979	AUTOSAR CAN Bus [+] 2 Serial Data	I	-
31 - 38	-	-	-	Not Occupied	-	-
39	0.5	GN/VT	4621	Engine Control Module LIN Bus 1	I	-
40 - 58	-	-	-	Not Occupied	-	-
