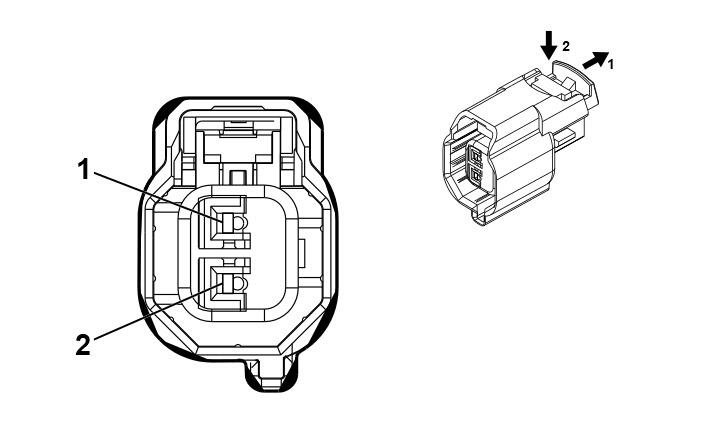

P19AK Radio Rear Speaker - Right
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 148032-0002
- Service Connector: 84766297
- Description: 2-Way F 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BU/BK |
115 |
Right Rear Speaker [-] Control |
I |
- |
| 2 |
0.75 |
WH |
46 |
Right Rear Speaker [+] Control |
I |
- |
