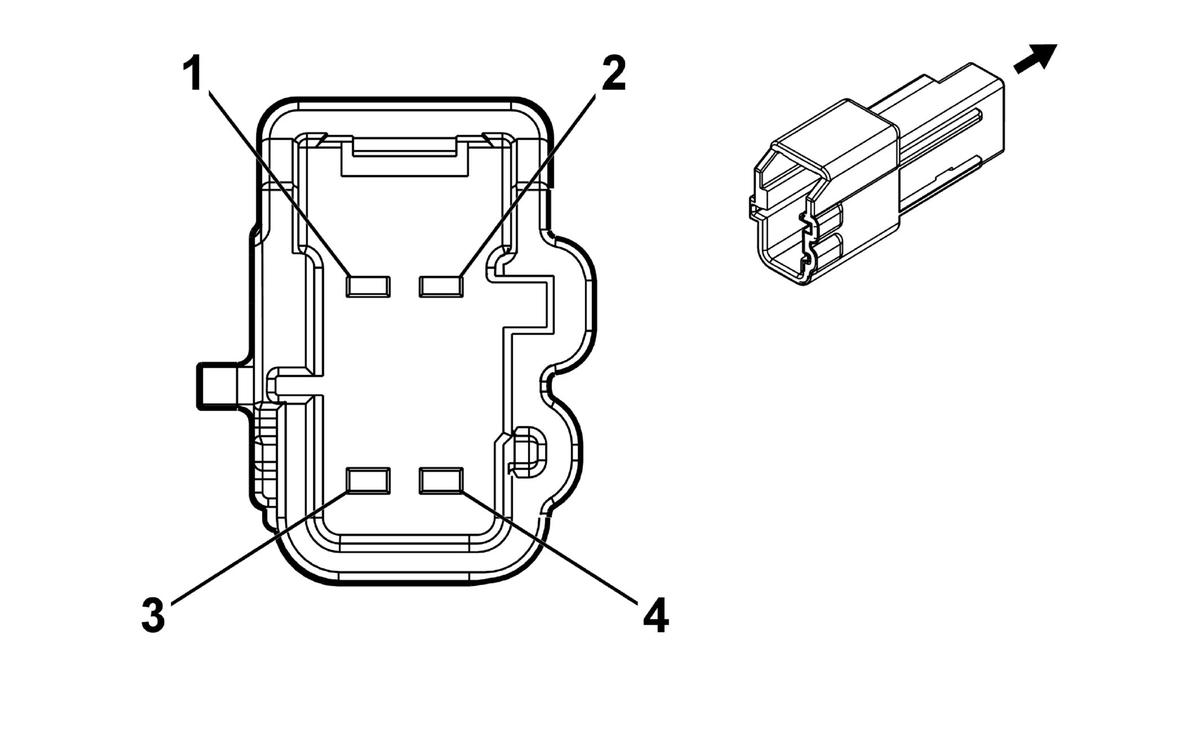

M73A Front Seat Back Ventilation Blower - Driver (KQV)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type:Front Seat Wiring Harness - Driver Back OEM Connector: 6098-7783 Service Connector: Service by Harness - See Part Catalog Description: 4-Way M 1.2 Series (BN)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-13 (BU)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	VT/BK	339	Run/Crank Ignition 1 Voltage	I	-
2	0.5	GN/VT	5906	Driver Seat Blower Motor Control 1	I	-
3	0.75 0.5	BK BK	1150 1150	Ground Ground	I I	KQV+LHD KQV+RHD
4	-	-	-	Not Occupied	-	-
