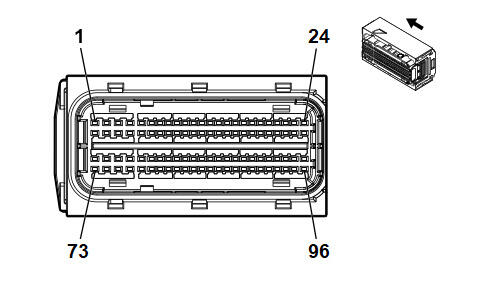

K71 Transmission Control Module X1

GM5611042Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type:Engine Wiring Harness
  • OEM Connector: 13539826
  • Service Connector: 84992315
  • Description: 96-Way F 1.2 MCP Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I 19300445 J-35616-12 (BU) J-38125-11A
II 84963773 J-35616-12 (BU) J-38125-215A
Pin Size Color Circuit Function Terminal Type ID Option
1 0.5 GN/BU 7806 Clutch Pressure Sensor Signal Even I -
2 0.5 BN/RD 7789 Transmission Control Sensors 5 Volt Reference 1 I -
3 0.5 YE/BK 7817 Transmission Baseline Oil System Pressure Sensor Signal I -
4 0.5 BK/BU 7792 Transmission Control Sensors Low Reference 2 I -
5 0.5 WH/BN 7807 Clutch Pressure Sensor Signal Odd I -
6 0.5 BU/RD 7791 Transmission Control Sensors 5 Volt Reference 2 I -
7 0.5 BN/GY 7809 Limited Slip Differential Pressure Sensor Signal I -
8 0.5 VT/RD 7795 Transmission Control Sensors 5 Volt Reference 4 I -
9 0.5 BN/WH 585 Transmission Fluid Temperature Sensor Signal I -
10 0.5 BK/BN 7790 Transmission Control Sensors Low Reference 1 I -
11 0.5 GN/BK 7808 Transmission Oil Temperature Sensor Signal 2 I -
12 - 14 - - - Not Occupied - -
15 0.5 GY/BU 6358 Output Speed Signal I -
16 - 18 - - - Not Occupied - -
19 0.5 VT/WH 4173 Transmission Speed Input Low Signal I -
20 0.5 YE/BN 3604 Transmission Output Speed Sensor Control I -
21 0.5 BN/WH 6254 Transmission Input Speed Sensor Signal I -
22 0.5 BK/BU 6253 Transmission Input Speed Sensor Ground I -
23 0.5 GY/BK 7810 Park Lock Position Sensor Signal I -
24 0.5 BK 7397 Low Reference I -
25 0.5 GN/RD 7793 Transmission Control Sensors 5 Volt Reference 3 I -
26 0.75 GY 7775 Electronic Limited Slip Differential Clutch Redundant Actuation Pressure Control I -
27 - - - Not Occupied - -
28 0.5 GY/VT 7813 Synchronizer Position Signal 3 I -
29 0.5 BK/GN 7794 Transmission Control Sensors Low Reference 3 I -
30 0.5 BN/YE 7811 Synchronizer Position Signal 1 I -
31 - - - Not Occupied - -
32 0.5 WH/BK 7812 Synchronizer Position Signal 2 I -
33 - 37 - - - Not Occupied - -
38 0.5 BU/YE 7814 Synchronizer Position Signal 4 I -
39 0.5 BK/VT 7796 Transmission Control Sensors Low Reference 4 I -
40 0.5 GN/WH 7815 Synchronizer Position Signal 5 I -
41 - 42 - - - Not Occupied - -
43 0.5 BU/WH 4174 Transmission Speed Input High Signal I -
44 - 45 - - - Not Occupied - -
46 0.5 YE/VT 7777 Primary Park Lock Stepper Motor Control Low I -
47 - - - Not Occupied - -
48 0.5 WH/GN 7776 Primary Park Lock Stepper Motor Control High I -
49 1.5 YE/RD 7798 Transmission Control Sensors 12 Volt Reference 2 II -
50 - 51 - - - Not Occupied - -
52 1.5 BN/RD 7800 Transmission Control Sensors 12 Volt Reference 4 II -
53 - 68 - - - Not Occupied - -
69 0.5 BU/GY 7779 Secondary Park Lock Stepper Motor Control Low I -
70 - - - Not Occupied - -
71 0.5 BN/WH 7778 Secondary Park Lock Stepper Motor Control High I -
72 - - - Not Occupied - -
73 0.75 BU/RD 7803 Transmission Control Sensors 12 Volt Reference 5 I -
74 0.75 GY/BN 7787 Synchronizer Actuation Selection Valve Control I -
75 1.5 WH/RD 7797 Transmission Control Sensors 12 Volt Reference 1 II -
76 - - - Not Occupied - -
77 0.75 GN/BK 7784 Synchronizer Pressure Control Valve Control 3 I -
78 0.75 WH/VT 7785 Synchronizer Pressure Control Valve Control 4 I -
79 0.75 YE/GN 7786 Synchronizer Pressure Control Valve Control 5 I -
80 0.75 BU 7780 Park Lock Engage Valve Control I -
81 0.75 BN 7771 Clutch Pressure Control Even I -
82 0.75 WH 7774 Clutch Redundant Actuation Pressure Control Even I -
83 0.75 BN 7818 Clutch Cooling Valve Control I -
84 0.75 BU 7773 Clutch Redundant Actuation Pressure Control Odd I -
85 0.75 GN 7772 Electronic Limited Slip Differential Clutch Pressure Control I -
86 0.75 YE 7770 Clutch Pressure Control Odd I -
87 0.75 BN/VT 7782 Synchronizer Pressure Control Valve Control 1 I -
88 0.75 BU/GY 7783 Synchronizer Pressure Control Valve Control 2 I -
89 0.75 VT/BU 7781 Park Lock Hold Control I -
90 0.75 GY/VT 7788 Transmission System Pressure Sensor Signal I -
91 - - - Not Occupied - -
92 0.75 GN/RD 7804 Transmission Control Sensors 12 Volt Reference 6 I -
93 - - - Not Occupied - -
94 0.75 GY/RD 7799 Transmission Control Sensors 12 Volt Reference 3 I -
95 - 96 - - - Not Occupied - -
