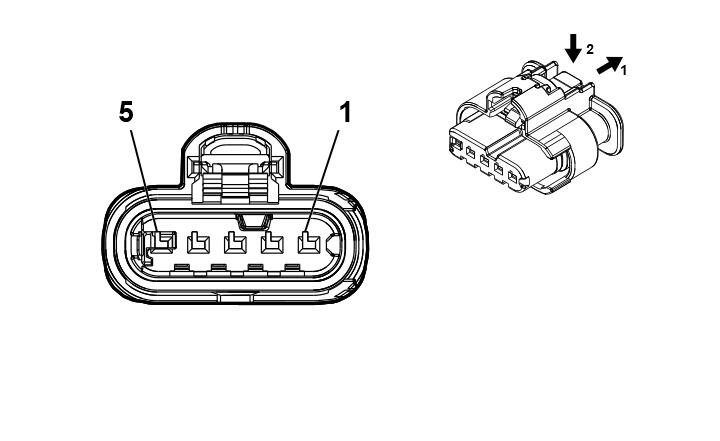

F101 Instrument Panel Airbag
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 2296701-3
- Service Connector: 84766300
- Description: 5-Way F 1.2 MCON-CB Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/OG |
3025 |
Passenger Instrument Panel Air Bag Stage 1 High Control |
I |
- |
| 2 |
0.5 |
OG/WH |
3024 |
Passenger Instrument Panel Air Bag Stage 1 Low Control |
I |
- |
| 3 |
0.5 |
BK |
1750 |
Ground |
I |
- |
| 4 |
0.5 |
GY/OG |
3027 |
Passenger Instrument Panel Air Bag Stage 2 High Control |
I |
- |
| 5 |
0.5 |
OG/VT |
3026 |
Passenger Instrument Panel Air Bag Stage 2 Low Control |
I |
- |
